PurposePlasmid for arabinose-induced expression of mf-lon. Note that this plasmid contains the original mf-lon cassette that is not codon optimized for expression in E. coli.
-
Depositing Lab
-

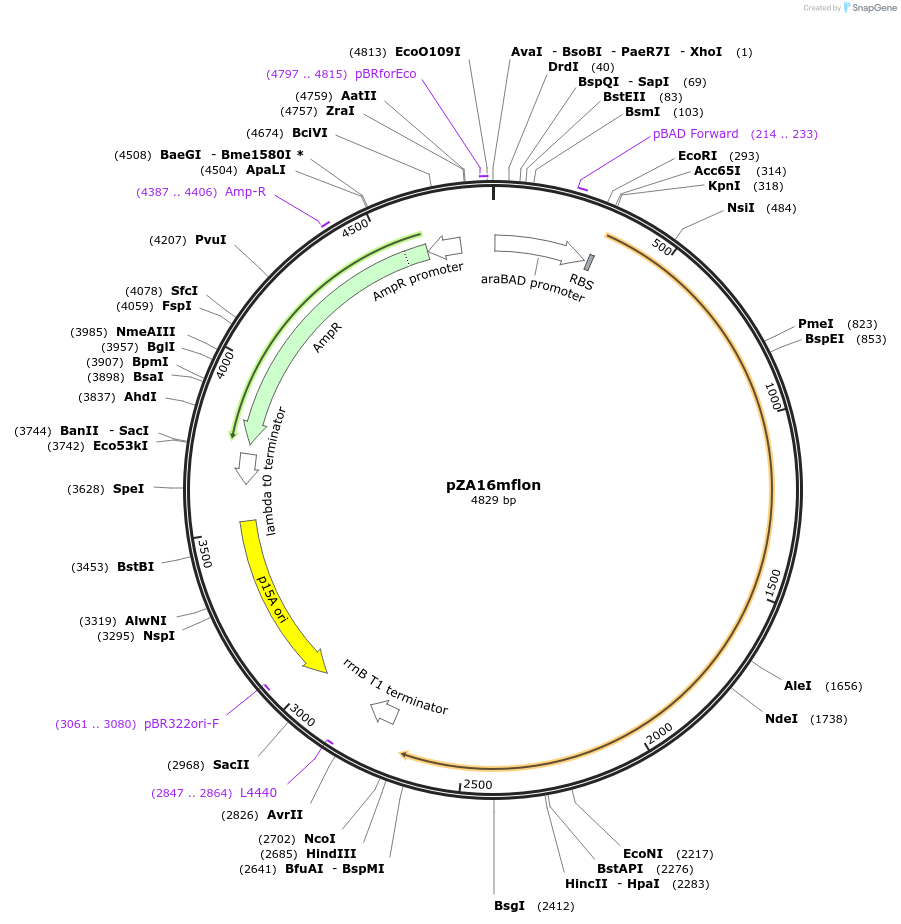

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 75439 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepZA11
-
Modifications to backbonereplaced pLtetO promoter with arabinose inducible pBAD promoter
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namemf-lon
-
SpeciesMesoplasma florum
- Promoter pBAD
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site KpnI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer CTCGAGAAGAAACCAATTGTC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pZA16mflon was a gift from James Collins (Addgene plasmid # 75439 ; http://n2t.net/addgene:75439 ; RRID:Addgene_75439) -
For your References section:
Tunable protein degradation in bacteria. Cameron DE, Collins JJ. Nat Biotechnol. 2014 Dec;32(12):1276-81. doi: 10.1038/nbt.3053. Epub 2014 Nov 17. 10.1038/nbt.3053 PubMed 25402616
