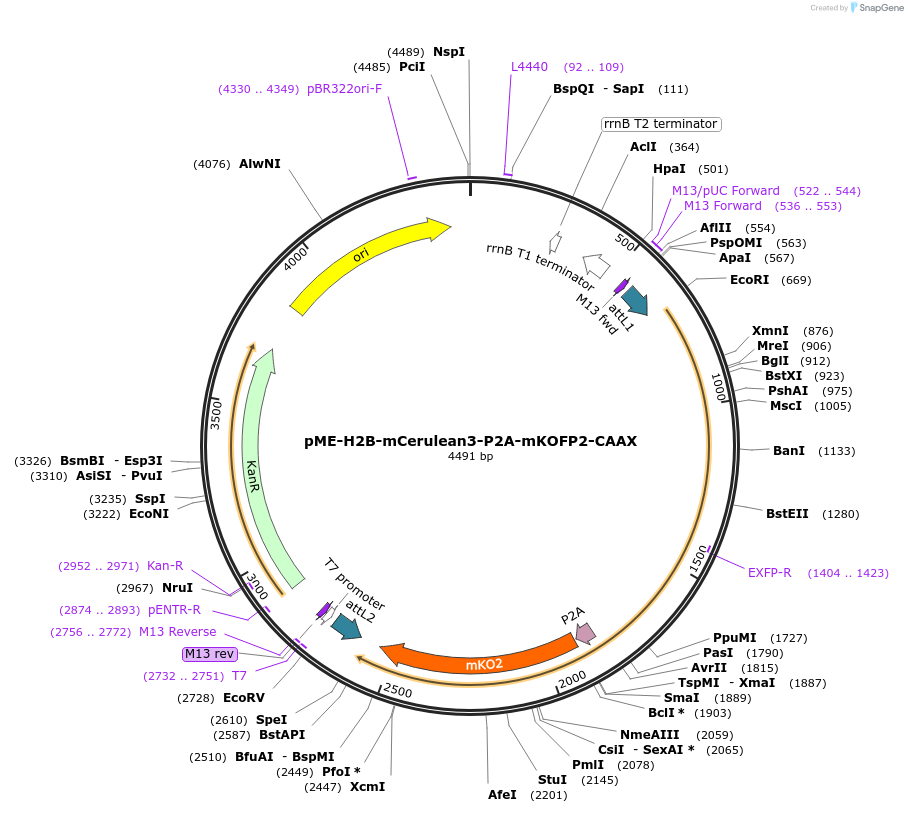

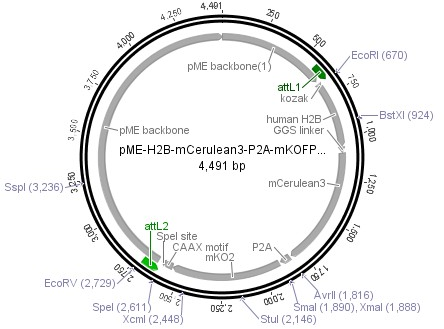

pME-H2B-mCerulean3-P2A-mKOFP2-CAAX
(Plasmid
#75154)
-
PurposeNuclear mCerulean2 (blue) fluorophore and a membrane targeted KOFP2 (orange) fluorophore separated by a self-cleaving 2A peptide for use with 5’ promoters.
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 75154 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepDONR221
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 2900
- Total vector size (bp) 4491
-
Vector typeMiddle entry vector for Multisite Gateway Three Fragment vector construction kit (Invitrogen)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameH2B-mCerulean3-P2A-mKOFP2-CAAX
-
SpeciesSynthetic
-
Insert Size (bp)1951
- Promoter n/a
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer M13F
- 3′ sequencing primer M13R (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byThe H2B-mCerulean3-P2A-mKOFP2-CAAX portion of this plasmid was ordered as a GeneArt™ Genestring™ fragment from ThermoFisher Scientific.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pME-H2B-mCerulean3-P2A-mKOFP2-CAAX was a gift from Nicholas Cole (Addgene plasmid # 75154 ; http://n2t.net/addgene:75154 ; RRID:Addgene_75154) -
For your References section:
A Tol2 Gateway-Compatible Toolbox for the Study of the Nervous System and Neurodegenerative Disease. Don EK, Formella I, Badrock AP, Hall TE, Morsch M, Hortle E, Hogan A, Chow S, Gwee SS, Stoddart JJ, Nicholson G, Chung R, Cole NJ. Zebrafish. 2016 Sep 15. 10.1089/zeb.2016.1321 PubMed 27631880
