pcDNA3-N-Flag-NLRP3
(Plasmid #75127)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 75127 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

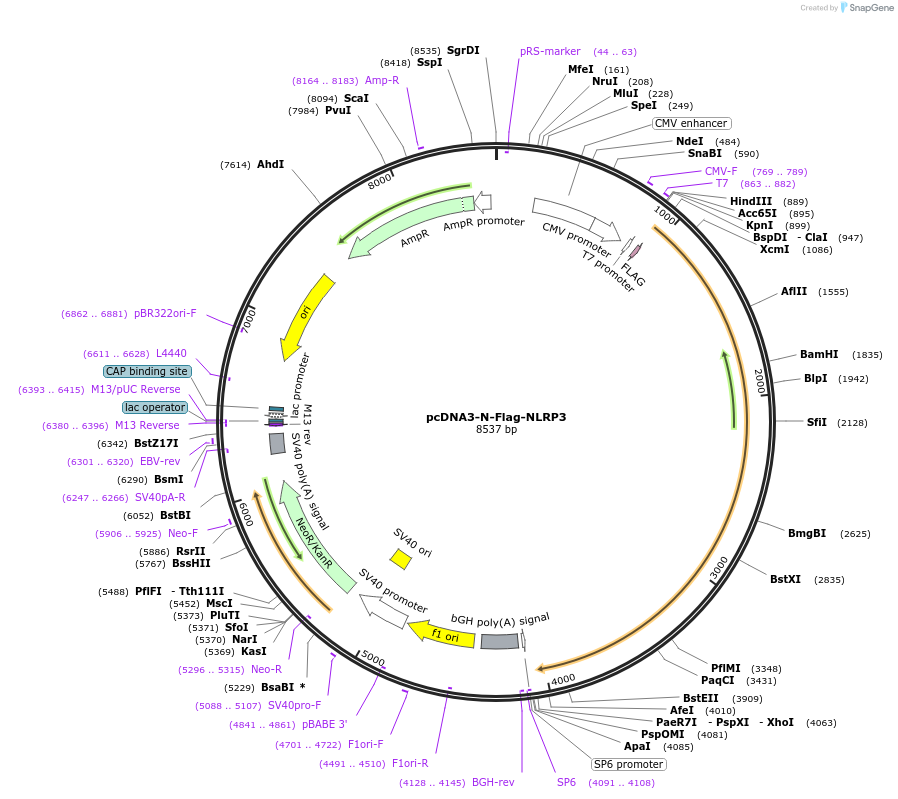

Backbone

  • Vector backbone
    pcDNA3
  • Backbone size w/o insert (bp) 5446
  • Total vector size (bp) 8548
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    NLR family, pyrin domain containing 3
  • Alt name
    Nlrp3
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    3102
  • GenBank ID
    NM_145827
  • Entrez Gene
    Nlrp3 (a.k.a. AGTAVPRL, AII/AVP, Cias1, FCAS, FCU, MWS, Mmig1, NALP3, Pypaf1)
  • Promoter CMV
  • Tag / Fusion Protein
    • Flag (N terminal on insert)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-N-Flag-NLRP3 was a gift from Bruce Beutler (Addgene plasmid # 75127 ; http://n2t.net/addgene:75127 ; RRID:Addgene_75127)

  • For your References section:

    NLRP3 activation and mitosis are mutually exclusive events coordinated by NEK7, a new inflammasome component. Shi H, Wang Y, Li X, Zhan X, Tang M, Fina M, Su L, Pratt D, Bu CH, Hildebrand S, Lyon S, Scott L, Quan J, Sun Q, Russell J, Arnett S, Jurek P, Chen D, Kravchenko VV, Mathison JC, Moresco EM, Monson NL, Ulevitch RJ, Beutler B. Nat Immunol. 2016 Mar;17(3):250-8. doi: 10.1038/ni.3333. Epub 2015 Dec 7. 10.1038/ni.3333 PubMed 26642356
