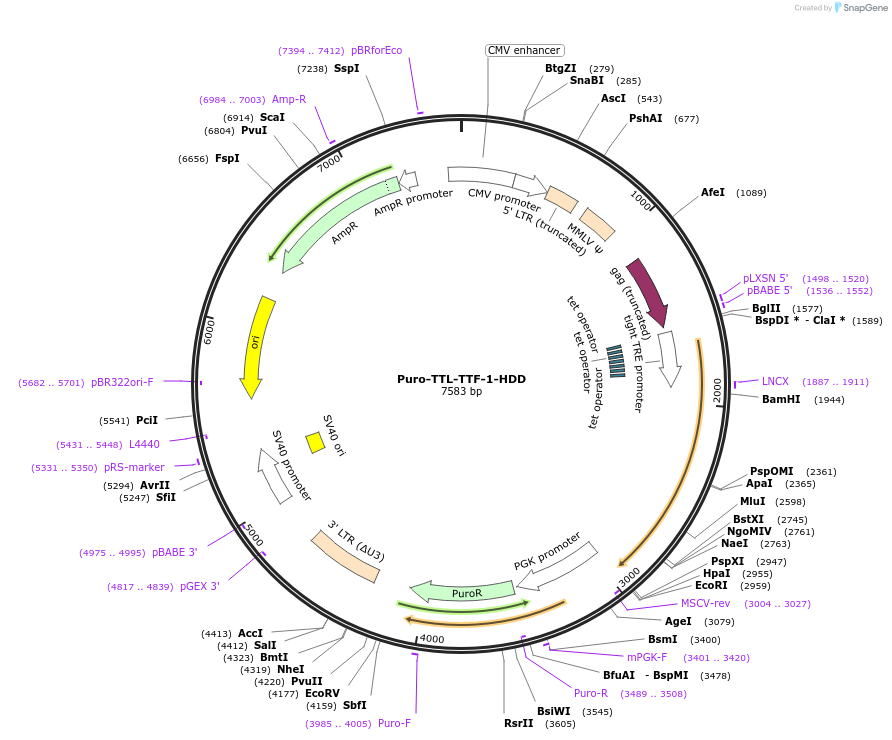

Puro-TTL-TTF-1-HDD
(Plasmid #74989)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 74989 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    Puro-TTL
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 6602
  • Total vector size (bp) 7718
  • Modifications to backbone
    TTF-1-HDD insert cloned into the Xho I site
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    TTF-1 HDD mutant
  • Alt name
    NKX2-1
  • Species
    H. sapiens (human)
  • Mutation
    Homeodomain
  • Entrez Gene
    NKX2-1 (a.k.a. BCH, BHC, NK-2, NKX2.1, NKX2A, NMTC1, T/EBP, TEBP, TITF1, TTF-1, TTF1)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Xho I (not destroyed)
  • 3′ cloning site Xho I (not destroyed)
  • 5′ sequencing primer CCCTTGAACCTCCTCGTTCGACC
  • 3′ sequencing primer GAGACGTGCTACTTCCATTTGTC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Puro-TTL-TTF-1-HDD was a gift from David Mu (Addgene plasmid # 74989 ; http://n2t.net/addgene:74989 ; RRID:Addgene_74989)

  • For your References section:

    Thyroid Transcription Factor 1 Reprograms Angiogenic Activities of Secretome. Wood LW, Cox NI, Phelps CA, Lai SC, Poddar A, Talbot C Jr, Mu D. Sci Rep. 2016 Feb 25;6:19857. doi: 10.1038/srep19857. 10.1038/srep19857 PubMed 26912193
