PurposeEncodes an sgRNA for spCas9 driven by hU6 promoter with a modified scaffold (Chen et al. Cell 2013) and a spacer targeting the 3'UTR of ACTB mRNA
-
Depositing Lab
-

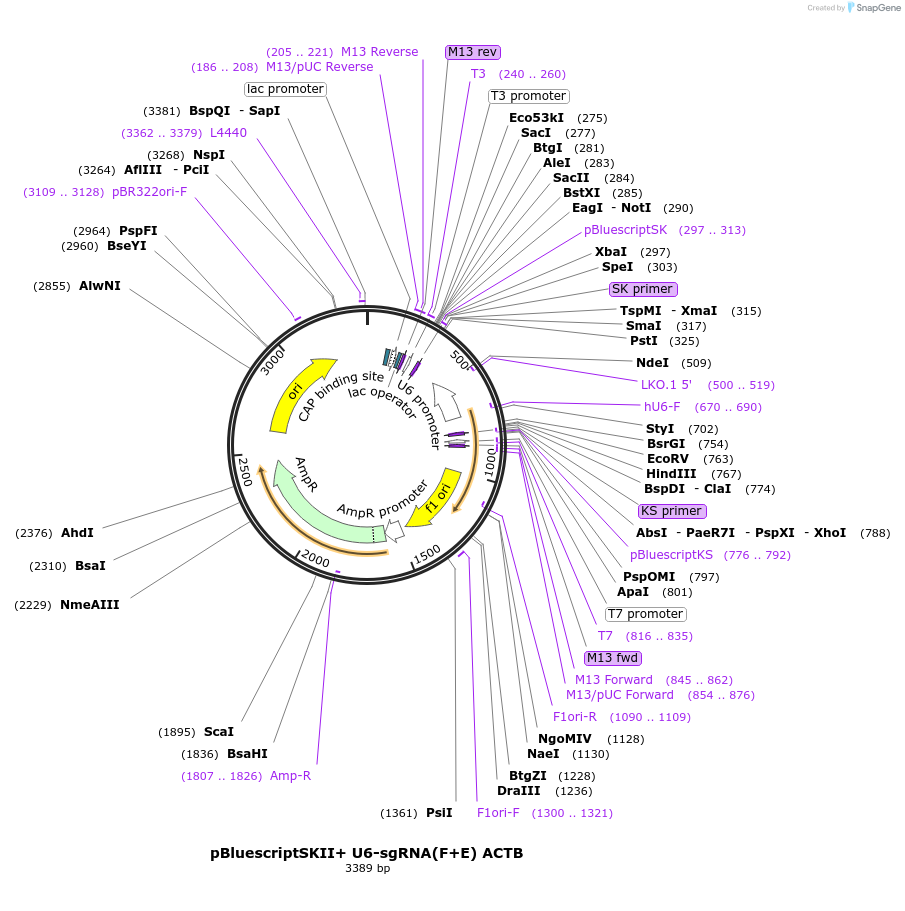

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 74705 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepBlueScript II SK(+)
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameU6 promoter driving sgRNA targeting the 3'UTR of ACTB mRNA
-
gRNA/shRNA sequence3'UTR of ACTB mRNA
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBluescriptSKII+ U6-sgRNA(F+E) ACTB was a gift from Eugene Yeo (Addgene plasmid # 74705 ; http://n2t.net/addgene:74705 ; RRID:Addgene_74705) -
For your References section:
Programmable RNA Tracking in Live Cells with CRISPR/Cas9. Nelles DA, Fang MY, O'Connell MR, Xu JL, Markmiller SJ, Doudna JA, Yeo GW. Cell. 2016 Mar 16. pii: S0092-8674(16)30204-5. doi: 10.1016/j.cell.2016.02.054. 10.1016/j.cell.2016.02.054 PubMed 26997482
