pBM3R1-B2
(Plasmid #74679)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 74679 Standard format: Plasmid sent in bacteria as agar stab 1 $85

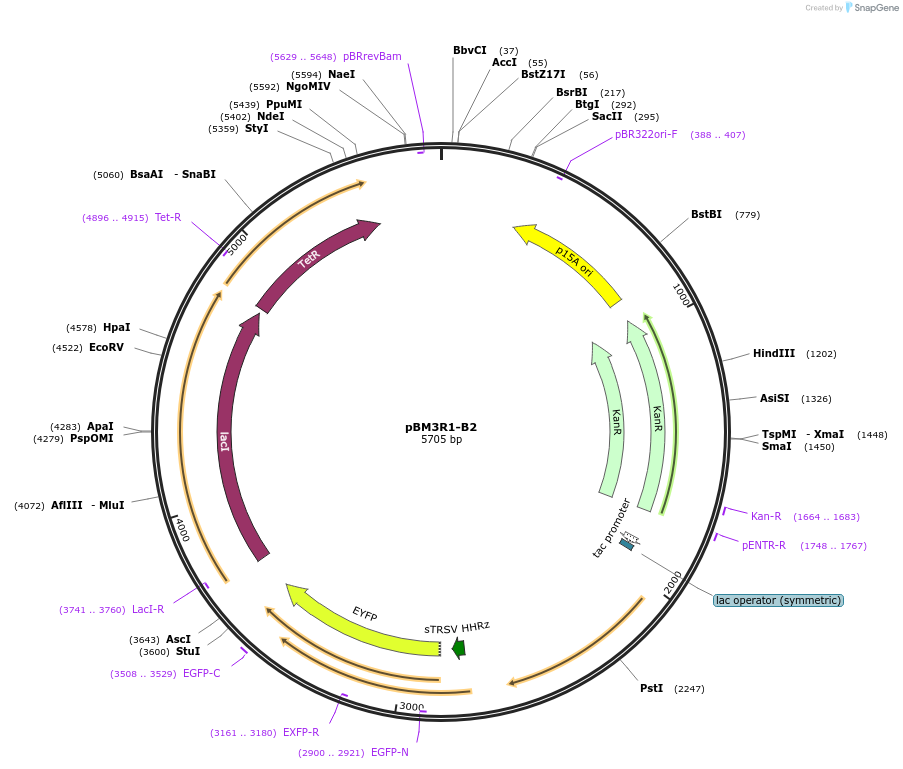

Backbone

  • Vector backbone
    pAN801
  • Backbone manufacturer
    Alec Nielsen
  • Backbone size w/o insert (bp) 3930
  • Total vector size (bp) 5705
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    PTac-RBSB2-BM3R1-PBM3R1-YFP
  • Species
    E. coli
  • Insert Size (bp)
    1775

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBM3R1-B2 was a gift from Christopher Voigt (Addgene plasmid # 74679 ; http://n2t.net/addgene:74679 ; RRID:Addgene_74679)
  • For your References section:

    Genetic circuit design automation. Nielsen AA, Der BS, Shin J, Vaidyanathan P, Paralanov V, Strychalski EA, Ross D, Densmore D, Voigt CA. Science. 2016 Apr 1;352(6281):aac7341. doi: 10.1126/science.aac7341. 10.1126/science.aac7341 PubMed 27034378
