pBLO1811_arC9_noNLS_human
(Plasmid #74494)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 74494 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

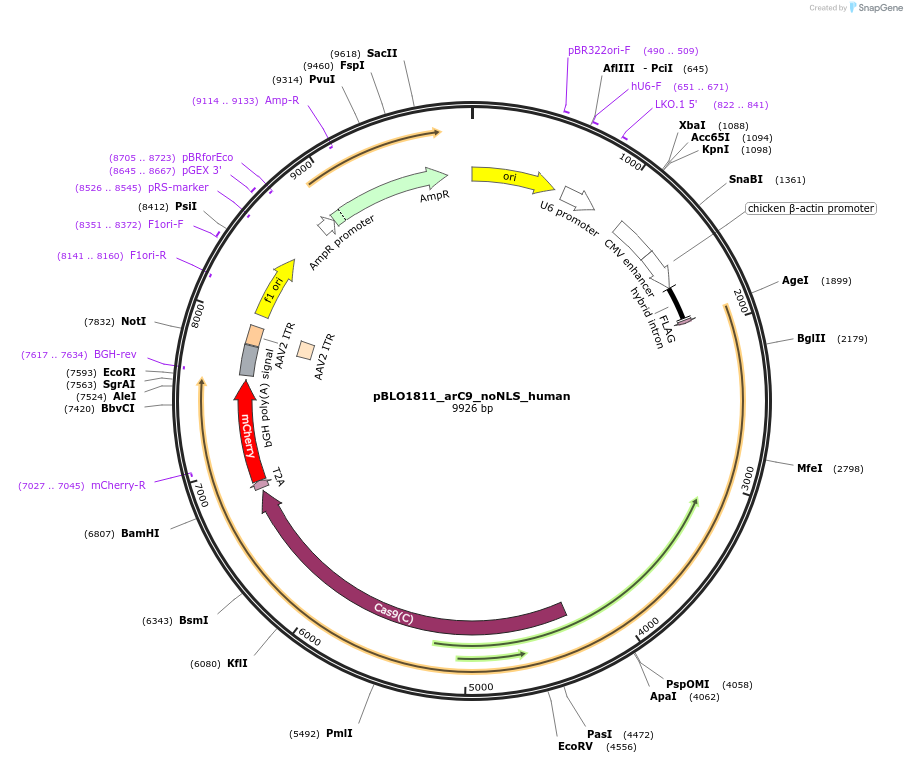

Backbone

  • Vector backbone
    px330
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    arC9
  • Alt name
    allosterically regulated Cas9
  • Species
    H. sapiens (human)
  • Tag / Fusion Protein
    • t2a mCherry (C-terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site bsaI (destroyed during cloning)
  • 3′ cloning site bsaI (destroyed during cloning)
  • 5′ sequencing primer GAGGGCCTATTTCCCATGATTCCT
  • 3′ sequencing primer TTCCTCATTTTATTAGGAAAGGACAGTGG
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    pX330 with modified inserts

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBLO1811_arC9_noNLS_human was a gift from David Savage (Addgene plasmid # 74494 ; http://n2t.net/addgene:74494 ; RRID:Addgene_74494)

  • For your References section:

    Profiling of engineering hotspots identifies an allosteric CRISPR-Cas9 switch. Oakes BL, Nadler DC, Flamholz A, Fellmann C, Staahl BT, Doudna JA, Savage DF. Nat Biotechnol. 2016 May 2. doi: 10.1038/nbt.3528. 10.1038/nbt.3528 PubMed 27136077
