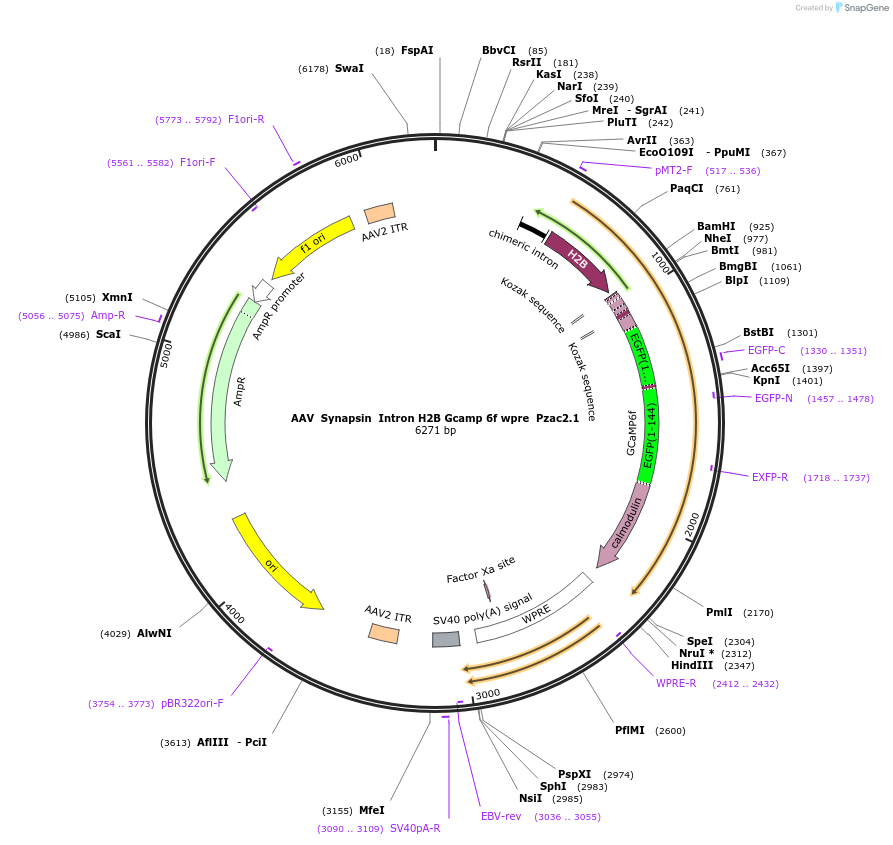

AAV Synapsin Intron H2B Gcamp 6f wpre Pzac2.1
(Plasmid #74144)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 74144 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    Pzac2.1
  • Backbone size w/o insert (bp) 4821
  • Total vector size (bp) 6579
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    GCaMP6f
  • Alt name
    GCaMP3-T302L R303P A317E D380Y T381R S383T R392G
  • Species
    R. norvegicus (rat), G. gallus (chicken); ; A. victoria (jellyfish)
  • Insert Size (bp)
    1353
  • Promoter synapsin
  • Tag / Fusion Protein
    • H2B (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NruI (destroyed during cloning)
  • 3′ cloning site NruI (destroyed during cloning)
  • 5′ sequencing primer intron f
  • 3′ sequencing primer AAV1621 r
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Vector named AA0215 ( Scott Sternson lab, hhmi/ JFRC)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV Synapsin Intron H2B Gcamp 6f wpre Pzac2.1 was a gift from Loren Looger (Addgene plasmid # 74144 ; http://n2t.net/addgene:74144 ; RRID:Addgene_74144)
