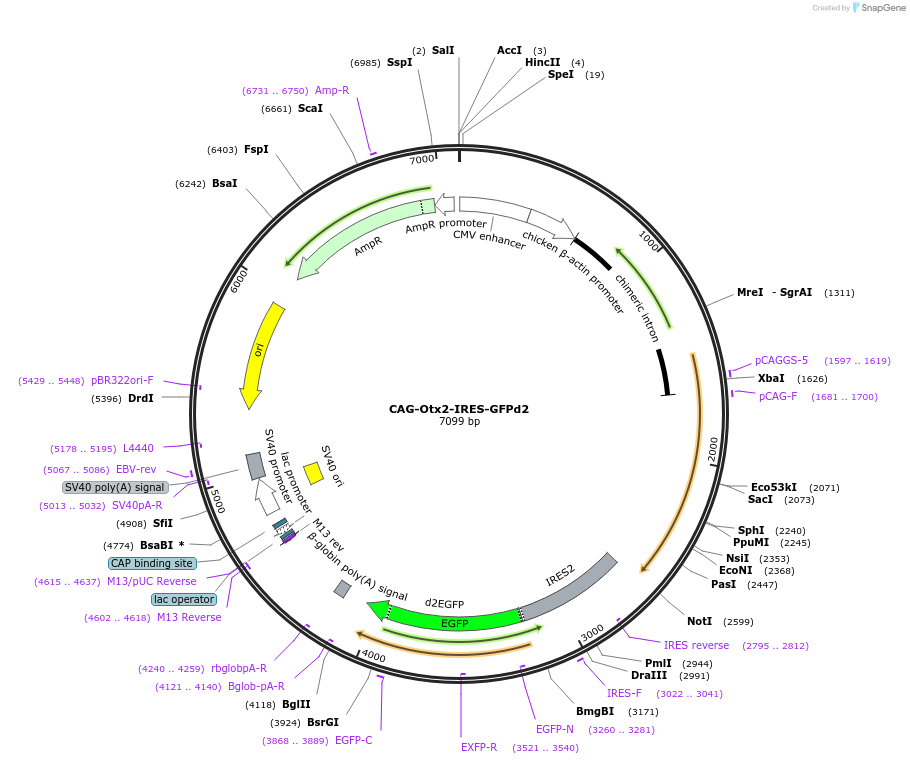

CAG-Otx2-IRES-GFPd2
(Plasmid #73996)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 73996 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    CAG-GFPd2
  • Backbone manufacturer
    Addgene (Plasmid #14760)
  • Backbone size w/o insert (bp) 4763
  • Total vector size (bp) 7096
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Otx2(isoform b)-Ires-GFP
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    2333
  • Entrez Gene
    Otx2 (a.k.a. E130306E05Rik)
  • Promoter CAG

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer gttcggcttctggcgtgt
  • 3′ sequencing primer TTTTGGCAGAGGGAAAAAGA
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CAG-Otx2-IRES-GFPd2 was a gift from Connie Cepko (Addgene plasmid # 73996 ; http://n2t.net/addgene:73996 ; RRID:Addgene_73996)

  • For your References section:

    A gene regulatory network controls the binary fate decision of rod and bipolar cells in the vertebrate retina. Wang S, Sengel C, Emerson MM, Cepko CL. Dev Cell. 2014 Sep 8;30(5):513-27. doi: 10.1016/j.devcel.2014.07.018. Epub 2014 Aug 21. 10.1016/j.devcel.2014.07.018 PubMed 25155555
