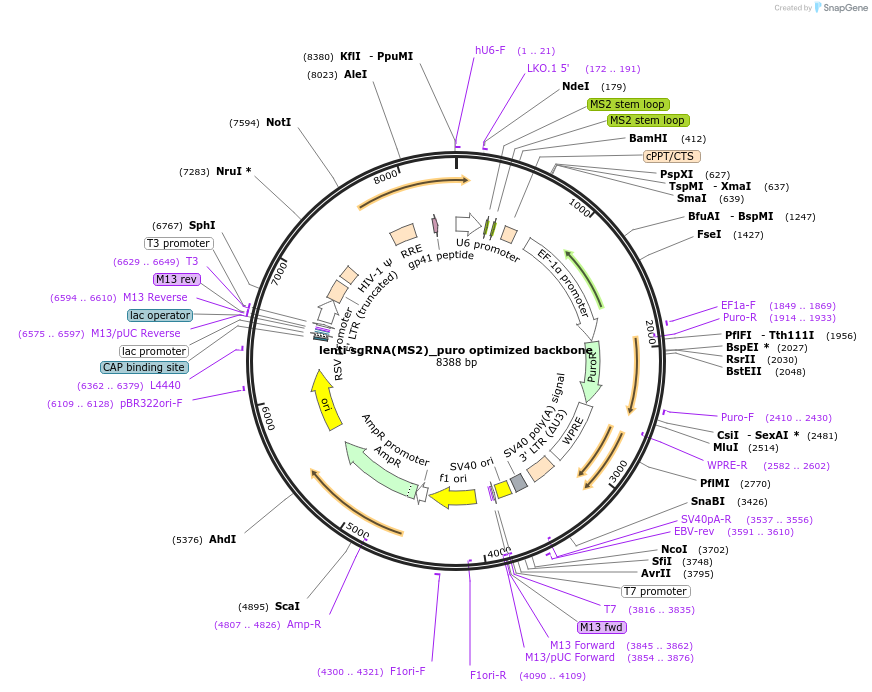

Purpose(Empty Backbone) optimized lenti sgRNA cloning backbone with MS2 loops at tetraloop and stemloop 2 and EF1a-puro resistance marker. Contains BsmBI sites for insertion of spacer sequences.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 73797 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Cloning Grade DNA | 73797-DNA.cg | 2 µg of cloning grade DNA in Tris buffer | 1 | $105 |
Backbone
-
Vector backbonepLKO
- Backbone size (bp) 8162
-
Vector typeMammalian Expression, Lentiviral, CRISPR
- Promoter U6 and EF1A
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer GAG GGC CTA TTT CCC ATG ATT CCT TCA TAT
- 3′ sequencing primer cctagaaggtccattagctgcaaagattcc (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Information for Cloning Grade DNA (Catalog # 73797-DNA.cg) ( Back to top)
Purpose
Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.
Delivery
- Amount 2 µg
- Guaranteed Concentration 100 ng/µl +/- 5 ng/µl
- Pricing $105 USD
- Storage DNA can be stored at 4℃ (short term) or -20℃ (long term).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Addgene has verified this plasmid using Next Generation Sequencing. Results are available here
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
lenti sgRNA(MS2)_puro optimized backbone was a gift from Feng Zhang (Addgene plasmid # 73797 ; http://n2t.net/addgene:73797 ; RRID:Addgene_73797) -
For your References section:
Genome-scale CRISPR-Cas9 knockout and transcriptional activation screening. Joung J, Konermann S, Gootenberg JS, Abudayyeh OO, Platt RJ, Brigham MD, Sanjana NE, Zhang F. Nat Protoc. 2017 Apr;12(4):828-863. doi: 10.1038/nprot.2017.016. Epub 2017 Mar 23. 10.1038/nprot.2017.016 PubMed 28333914
