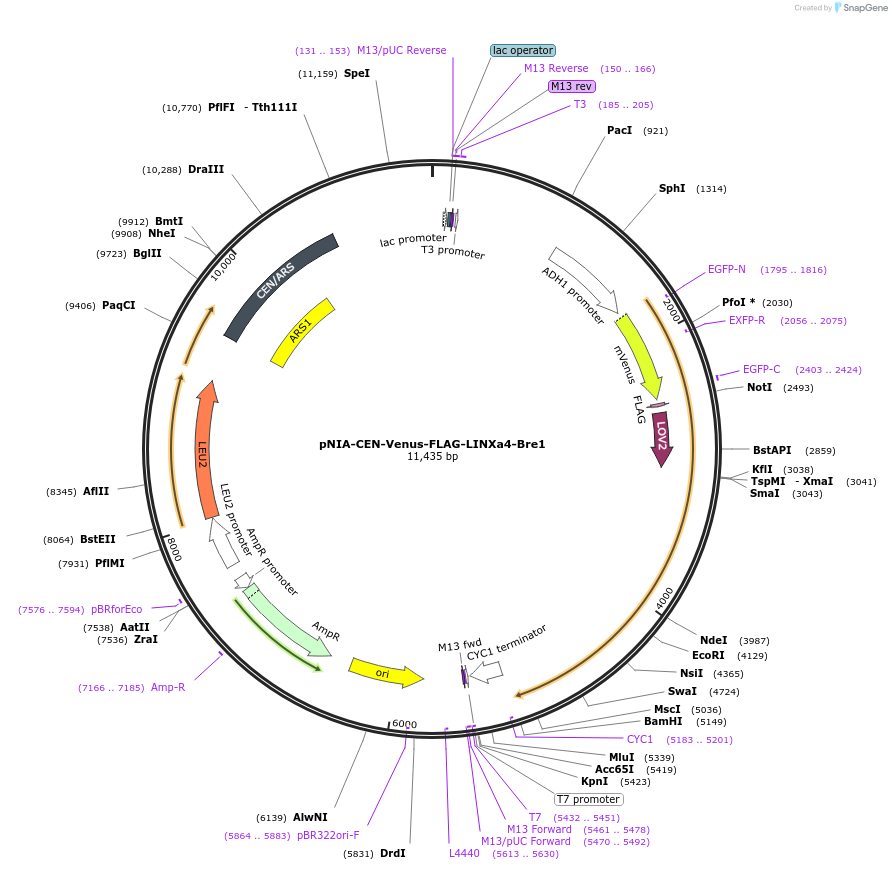

pNIA-CEN-Venus-FLAG-LINXa4-Bre1
(Plasmid #73618)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 73618 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pNIA-CEN
  • Backbone size w/o insert (bp) 10700
  • Total vector size (bp) 11435
  • Vector type
    Yeast Expression, Synthetic Biology
  • Selectable markers
    LEU2

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Venus
  • Species
    S. cerevisiae (budding yeast), Synthetic; Avena Sativa
  • Insert Size (bp)
    735
  • Mutation
    Bre1 point mutations K8A, K9A and K11A
  • Promoter ADH1
  • Tag / Fusion Protein
    • FLAG (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HpaI (destroyed during cloning)
  • 3′ cloning site HpaI (destroyed during cloning)
  • 5′ sequencing primer GTCATTGTTCTCGTTCCCTTTCTTCCTTG
  • 3′ sequencing primer GGGACCTAGACTTCAGGTTGTCTAACTCC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pNIA-CEN-Venus-FLAG-LINXa4-Bre1 was a gift from Brian Kuhlman (Addgene plasmid # 73618 ; http://n2t.net/addgene:73618 ; RRID:Addgene_73618)

  • For your References section:

    Light-induced nuclear export reveals rapid dynamics of epigenetic modifications. Yumerefendi H, Lerner AM, Zimmerman SP, Hahn K, Bear JE, Strahl BD, Kuhlman B. Nat Chem Biol. 2016 Jun;12(6):399-401. doi: 10.1038/nchembio.2068. Epub 2016 Apr 18. 10.1038/nchembio.2068 PubMed 27089030
