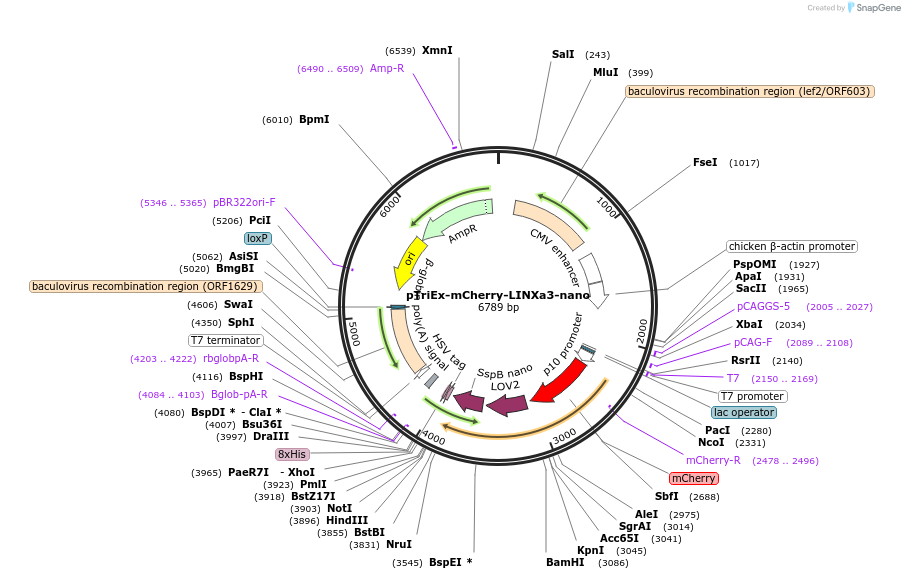

pTriEx-mCherry-LINXa3-nano
(Plasmid #73616)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 73616 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pTriEx
  • Backbone size w/o insert (bp) 5940
  • Total vector size (bp) 6786
  • Vector type
    Mammalian Expression, Bacterial Expression, Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    LINXa3-nano
  • Species
    Synthetic; Avena Sativa
  • Insert Size (bp)
    846
  • Tag / Fusion Protein
    • mCherry (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CCCAACACAATATATTATAGTTAAATAAGAATTATTATC
  • 3′ sequencing primer GGTGGTGCTCGAGATCCTCGGGG
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTriEx-mCherry-LINXa3-nano was a gift from Brian Kuhlman (Addgene plasmid # 73616 ; http://n2t.net/addgene:73616 ; RRID:Addgene_73616)

  • For your References section:

    Light-induced nuclear export reveals rapid dynamics of epigenetic modifications. Yumerefendi H, Lerner AM, Zimmerman SP, Hahn K, Bear JE, Strahl BD, Kuhlman B. Nat Chem Biol. 2016 Jun;12(6):399-401. doi: 10.1038/nchembio.2068. Epub 2016 Apr 18. 10.1038/nchembio.2068 PubMed 27089030
