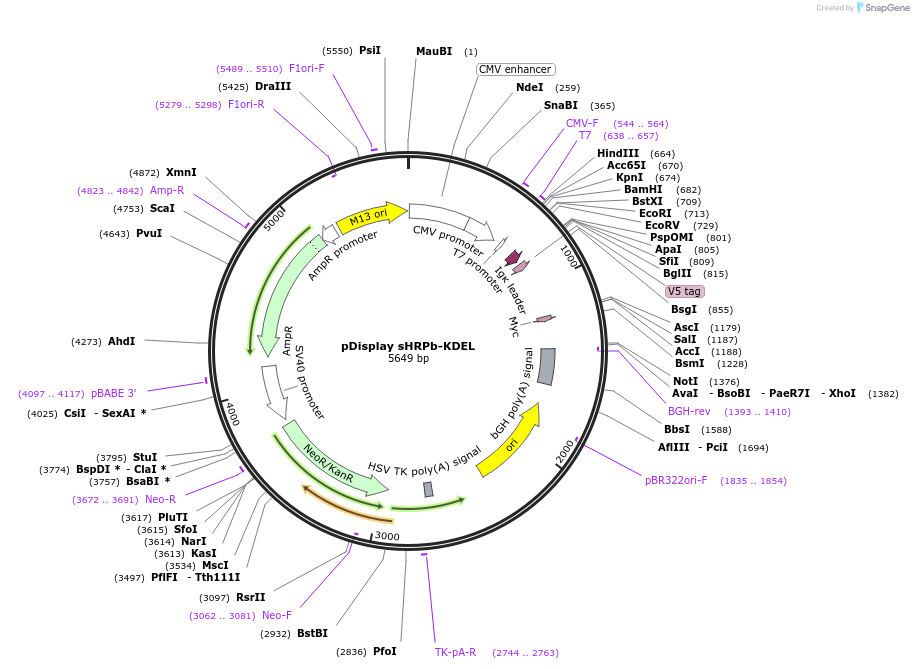

pDisplay sHRPb-KDEL
(Plasmid #73150)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 73150 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pDisplay
  • Backbone size w/o insert (bp) 5208
  • Total vector size (bp) 5643
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    sHRPb-KDEL
  • Species
    Synthetic
  • Insert Size (bp)
    435
  • Promoter CMV
  • Tag / Fusion Protein
    • V5 tag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer T7
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

sHRPb is the small split HRP fragment. It consists of amino acids 214-308 of horseradish peroxidase (HRP) with the following 2 mutations: N255D, L299R

The insert contains the following features:
EcoRI-Ig k-chain ss-BglII-V5 epitope tag-sHRPb-3 aa linker-KDEL-Stop-AscI

V5 epitope tag: GKPIPNPLLGLDST
3 aa linker: GSG

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDisplay sHRPb-KDEL was a gift from Alice Ting (Addgene plasmid # 73150 ; http://n2t.net/addgene:73150 ; RRID:Addgene_73150)
  • For your References section:

    A split horseradish peroxidase for the detection of intercellular protein-protein interactions and sensitive visualization of synapses. Martell JD, Yamagata M, Deerinck TJ, Phan S, Kwa CG, Ellisman MH, Sanes JR, Ting AY. Nat Biotechnol. 2016 May 30. doi: 10.1038/nbt.3563. 10.1038/nbt.3563 PubMed 27240195
