pHR-FKBP:mCherry-BclXLc33
(Plasmid #72905)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 72905 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

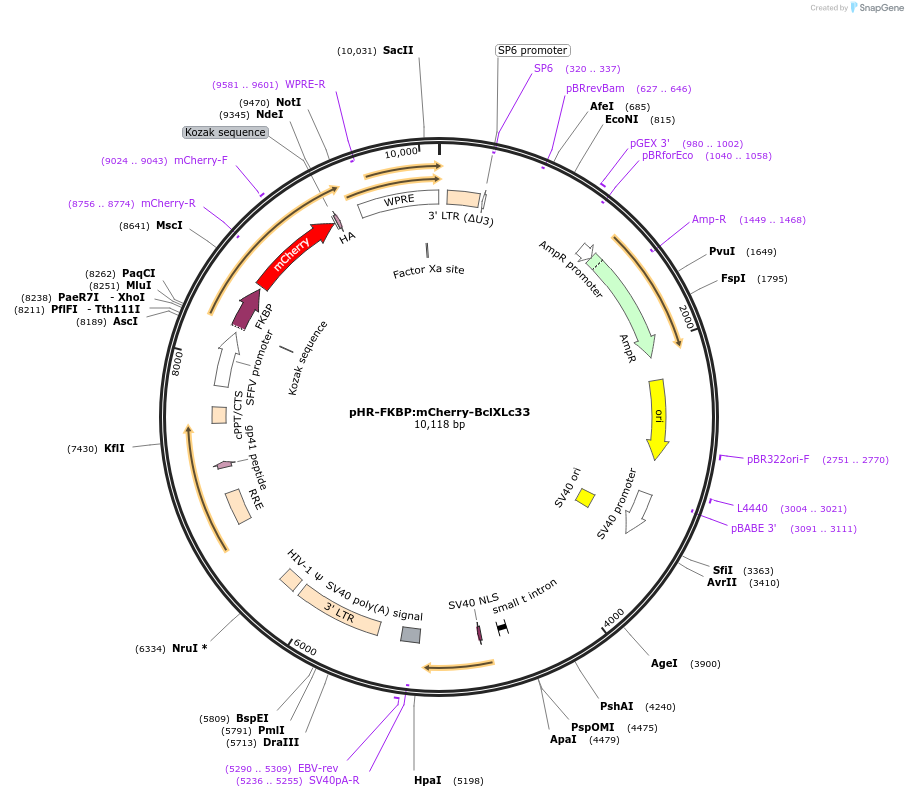

Backbone

  • Vector backbone
    pHR'
  • Total vector size (bp) 10118
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Bl2-like protein 1, isoform Bcl-X(L) (fragment)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    102
  • Mutation
    33 C-terminal a.a.
  • Tag / Fusion Protein
    • FKBP, mCherry (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site MluI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer gcttcccgagctctataaaagagc
  • 3′ sequencing primer ccagaggttgattatcgataagc
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHR-FKBP:mCherry-BclXLc33 was a gift from Ivan Yudushkin (Addgene plasmid # 72905 ; http://n2t.net/addgene:72905 ; RRID:Addgene_72905)

  • For your References section:

    Localization of mTORC2 activity inside cells. Ebner M, Sinkovics B, Szczygiel M, Ribeiro DW, Yudushkin I. J Cell Biol. 2017 Jan 31. pii: jcb.201610060. doi: 10.1083/jcb.201610060. 10.1083/jcb.201610060 PubMed 28143890
