pNLS-LEXY (pDN138)
(Plasmid
#72657)
-
Purpose(Empty Backbone) golden gate entry vector for mCherry-LEXY tagging of proteins (N-terminal cMyc(P1A) NLS)
-
Depositing Labs
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 72657 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

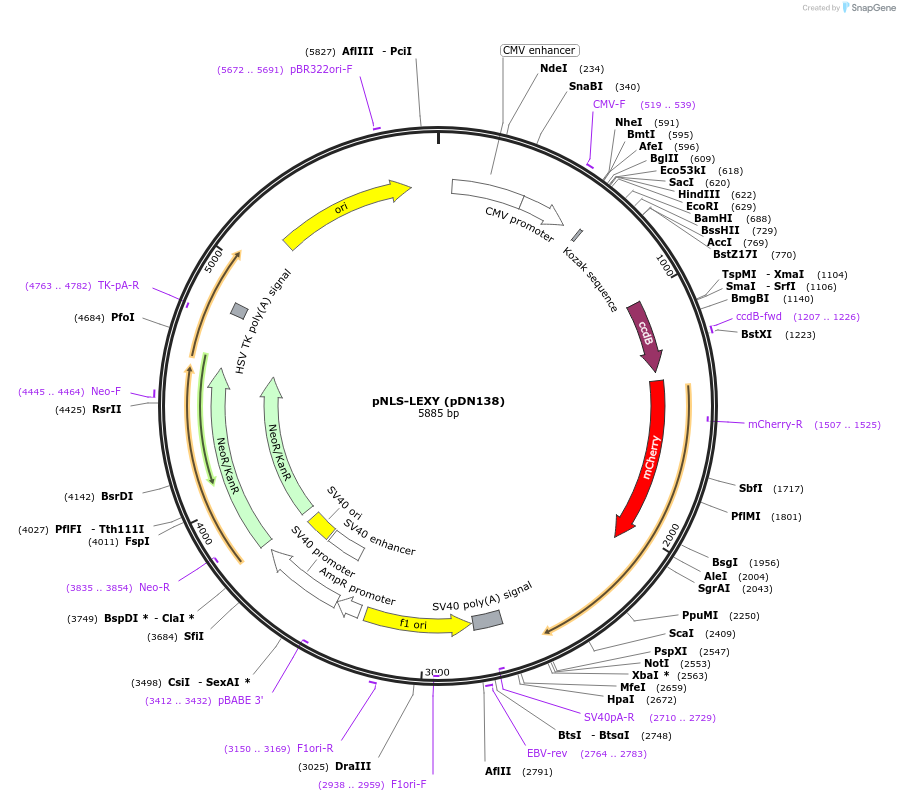

Backbone
-
Vector backbonepEGFP-N1
-
Backbone manufacturerClontech
- Backbone size (bp) 5885
-
Vector typeMammalian Expression ; golden gate entry vector
- Promoter CMV-F
-
Tags
/ Fusion Proteins
- NLS (N terminal on backbone)
- mCherry-LEXY (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer CMV-F
- 3′ sequencing primer SV40pA-R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pNLS-LEXY (pDN138) was a gift from Barbara Di Ventura & Roland Eils (Addgene plasmid # 72657 ; http://n2t.net/addgene:72657 ; RRID:Addgene_72657) -
For your References section:
Optogenetic control of nuclear protein export. Niopek D, Wehler P, Roensch J, Eils R, Di Ventura B. Nat Commun. 2016 Feb 8;7:10624. doi: 10.1038/ncomms10624. 10.1038/ncomms10624 PubMed 26853913
