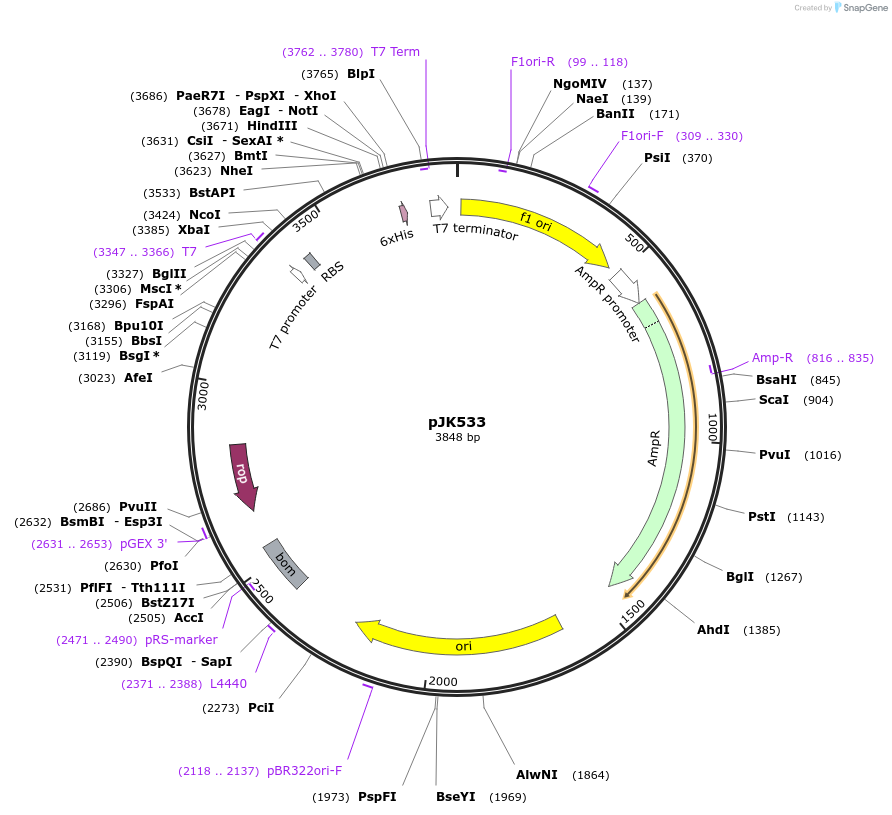

pJK533
(Plasmid
#72514)
-
PurposeProduces Acetobacter aceti 1023 formylglycinamidine ribonucleotide synthetase small subunit (AaPurS)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 72514 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepET23d
- Backbone size w/o insert (bp) 3663
- Total vector size (bp) 3849
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameformylglycinamidine ribonucleotide synthetase, small subunit
-
Alt namepurS
-
Alt nameAZ09_06375
-
SpeciesAcetobacter aceti 1023
-
Mutationcontains additional Ala2
-
GenBank IDKDE20458
- Promoter T7
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NcoI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer T7 promoter
- 3′ sequencing primer T7 terminator (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJK533 was a gift from T. J. Kappock (Addgene plasmid # 72514 ; http://n2t.net/addgene:72514 ; RRID:Addgene_72514)
