Purpose(Empty Backbone) Express gene of interest under truncated EF-1 promoter
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 72484 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * | |
* Log in to view industry pricing.
Backbone
-
Vector backbonepCDH-CMV-MCS
-
Backbone manufacturerSystembio
- Backbone size (bp) 6421
-
Modifications to backboneClaI/SalI fragment was replaced with EF1s + new MCS
-
Vector typeMammalian Expression, Lentiviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 3′ sequencing primer CAACACCACGGAATTGTCAG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCDH-EF1s was a gift from Kazuhiro Oka (Addgene plasmid # 72484 ; http://n2t.net/addgene:72484 ; RRID:Addgene_72484)

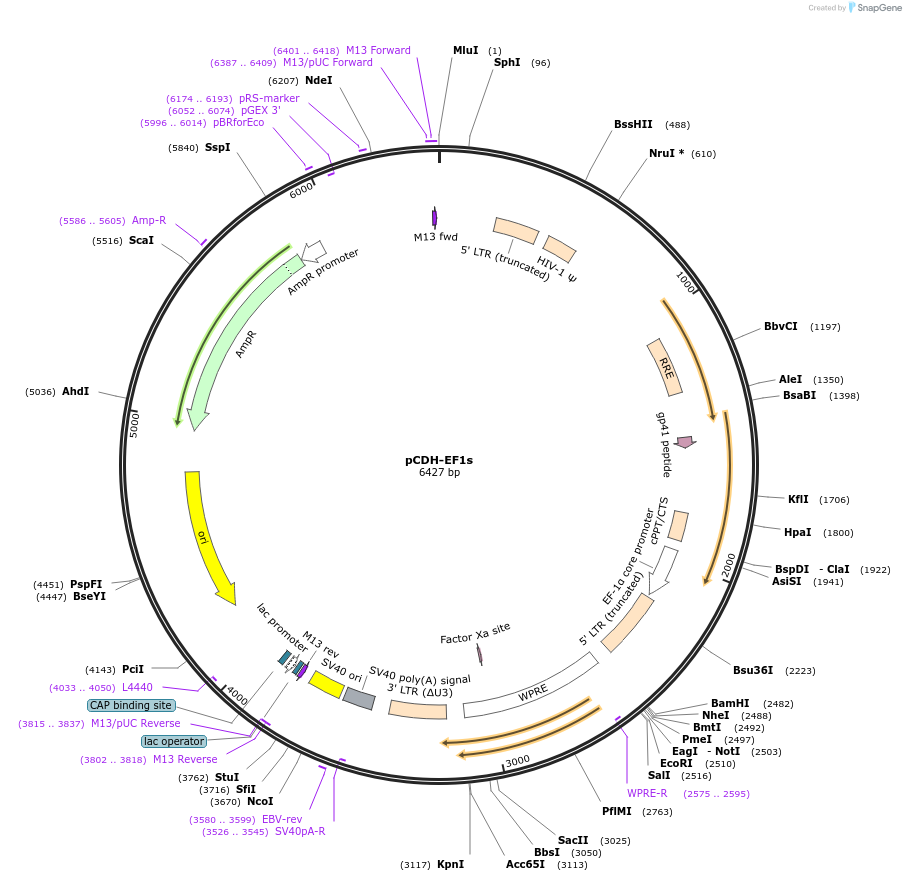

Map uploaded by the depositor.
