pJK635
(Plasmid
#72473)
-
Purpose(Empty Backbone) pET28a modified to contain TEV protease fusion tag instead of T7 tag
-
Depositing Lab
-
Publication
-

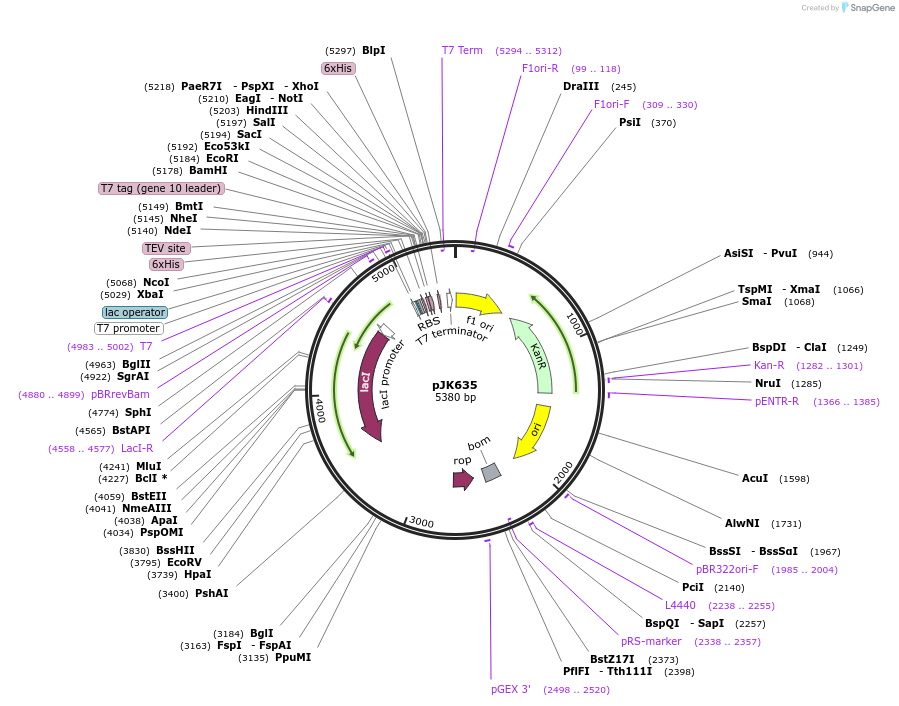

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 72473 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepET28a
- Backbone size (bp) 5381
-
Modifications to backbonereplaced T7-tag sequence with TEV protease recognition site.
-
Vector typeBacterial Expression
- Promoter T7
-
Tags
/ Fusion Proteins
- His6 (N terminal on backbone)
- TEV protease cleavage site (N terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer T7 promoter
- 3′ sequencing primer T7 terminator (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Alters N-terminal appendage to MAHHHHHHSSGVDLGTENLYFQSH for a gene cloned in NdeI site. After cleavage by TEV protease, results in Ser-His scar on the N-terminus.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJK635 was a gift from T. J. Kappock (Addgene plasmid # 72473 ; http://n2t.net/addgene:72473 ; RRID:Addgene_72473)
