pJK641
(Plasmid #72468)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 72468 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

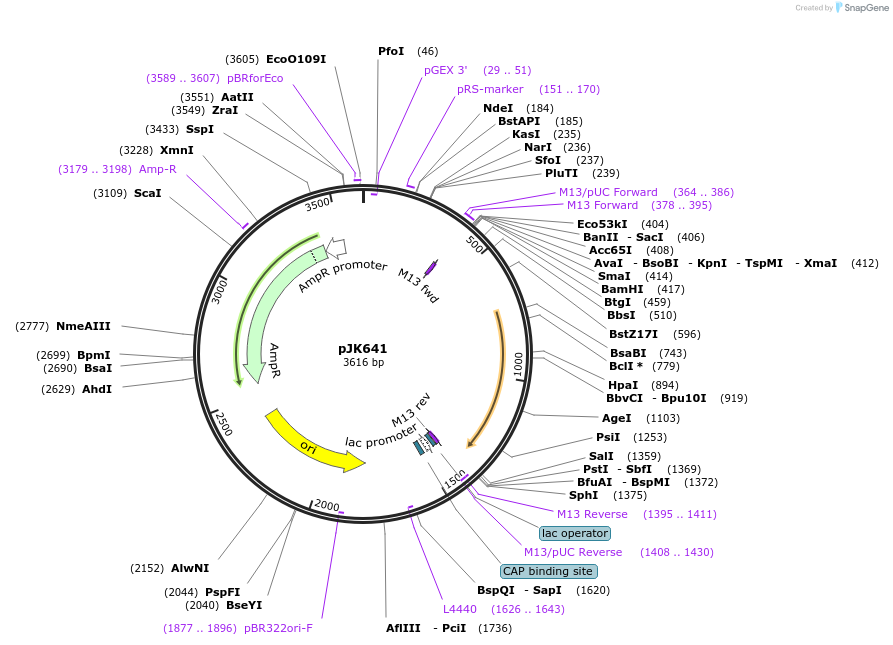

Backbone

  • Vector backbone
    pUC19
  • Backbone size w/o insert (bp) 2686
  • Total vector size (bp) 3616
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    response regulator in two-component regulatory system with EvgS
  • Alt name
    evgA
  • Species
    Escherichia coli str. K-12 substr. MG1655
  • GenBank ID
    NP_416870.1
  • Entrez Gene
    evgA (a.k.a. b2369, ECK2365)
  • Promoter lac

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SalI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer M13-forward
  • 3′ sequencing primer M13-reverse
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Insert is oriented parallel to lac promoter. Contains 5'-UTR including EvgA binding site.
HindIII site is not unique

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJK641 was a gift from T. J. Kappock (Addgene plasmid # 72468 ; http://n2t.net/addgene:72468 ; RRID:Addgene_72468)
