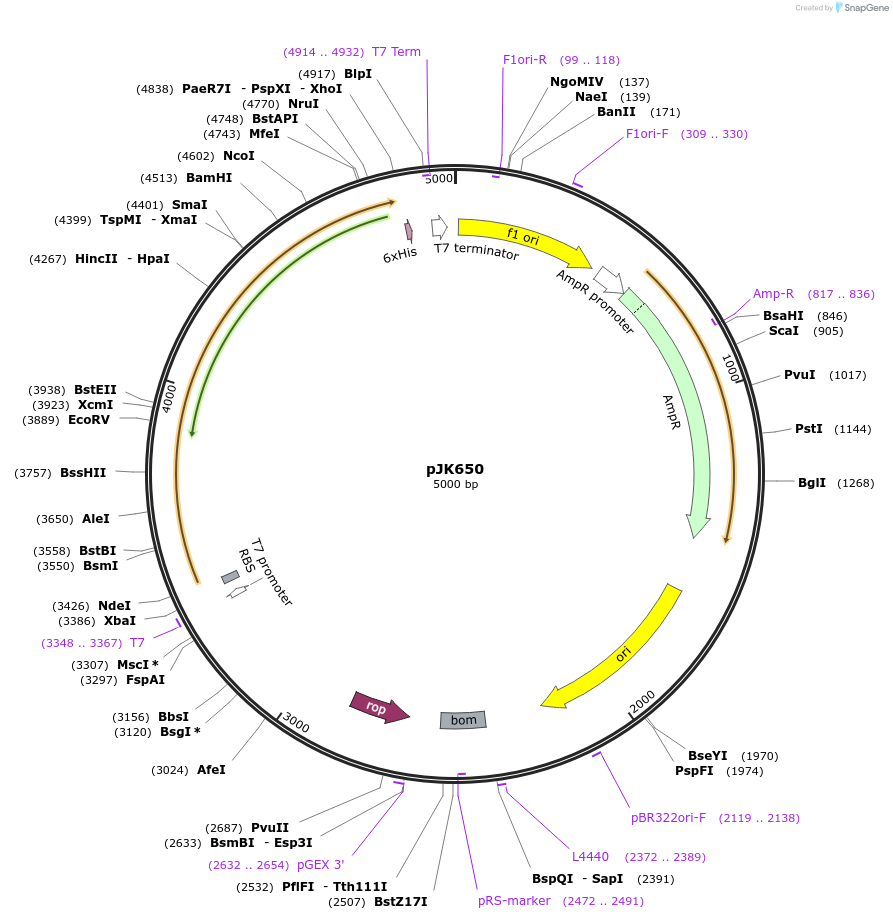

pJK650
(Plasmid #72400)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 72400 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pET23a
  • Backbone size w/o insert (bp) 3666
  • Total vector size (bp) 5000
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    glutamine synthetase
  • Alt name
    glnA
  • Alt name
    JW3841
  • Species
    Escherichia coli str. K-12 substr. MG1655)
  • Mutation
    Mutated tyrosine-397 to phenylalanine to block adenylylation (note:initiator Met is codon zero)
  • Entrez Gene
    glnA (a.k.a. b3870, ECK3863, JW3841)
  • Promoter T7

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer T7 promoter
  • 3′ sequencing primer T7 terminator
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Gene amplified from a plasmid template provided by Jamie Williamson (Scripps Research Institute) and cloned by our lab.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJK650 was a gift from T. J. Kappock (Addgene plasmid # 72400 ; http://n2t.net/addgene:72400 ; RRID:Addgene_72400)
