PurposeBacterial expression of monomeric enhanced green fluorescent protein (mEGFP) containing SnoopTag at the N-terminus and SpyTag at the C-terminus, for programmed polyprotein synthesis.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 72325 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepET28a
-
Backbone manufacturerNovagen
- Backbone size w/o insert (bp) 5369
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-

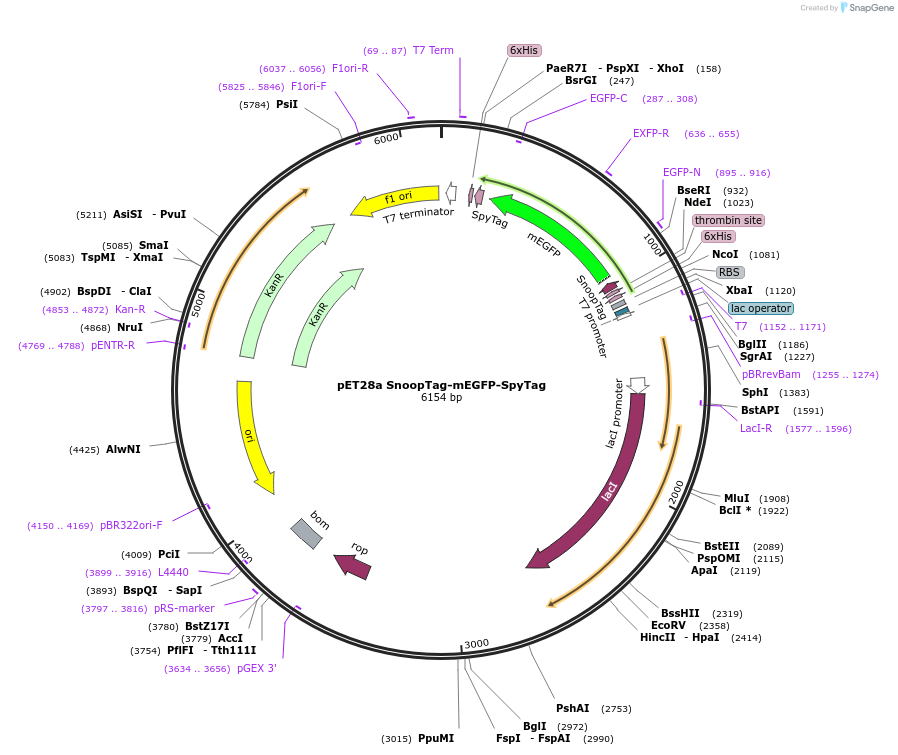

Gene/Insert namepET28a SnoopTag-mEGFP-SpyTag
-
Alt nameSnoopTag-mEGFP-SpyTag
-
SpeciesSynthetic
-
Insert Size (bp)402
-
Tag
/ Fusion Protein
- N-terminal His6 tag
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer TAA TAC GAC TCA CTA TAG GG (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET28a SnoopTag-mEGFP-SpyTag was a gift from Mark Howarth (Addgene plasmid # 72325 ; http://n2t.net/addgene:72325 ; RRID:Addgene_72325) -
For your References section:
Programmable polyproteams built using twin peptide superglues. Veggiani G, Nakamura T, Brenner MD, Gayet RV, Yan J, Robinson CV, Howarth M. Proc Natl Acad Sci U S A. 2016 Jan 19. pii: 201519214. 10.1073/pnas.1519214113 PubMed 26787909
