pDZ585 pKAN 2x-mCherry
(Plasmid
#72236)
-
PurposeFloxed Kanamycin (G418) selection maker; 3' tagging vector used to create C-terminal fusion proteins with 2x-mCherry
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 72236 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepKAN
- Backbone size w/o insert (bp) 4821
- Total vector size (bp) 6264
-
Vector typeBacterial Expression
-
Selectable markersKanamycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert name2x-mCherry
-
Insert Size (bp)1443
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer TGT AAA ACG ACG GCC AGT (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pDZ585 pKAN 2x-mCherry was a gift from Daniel Zenklusen (Addgene plasmid # 72236 ; http://n2t.net/addgene:72236 ; RRID:Addgene_72236) -
For your References section:
The nuclear basket mediates perinuclear mRNA scanning in budding yeast. Saroufim MA, Bensidoun P, Raymond P, Rahman S, Krause MR, Oeffinger M, Zenklusen D. J Cell Biol. 2015 Dec 21;211(6):1131-40. doi: 10.1083/jcb.201503070. 10.1083/jcb.201503070 PubMed 26694838

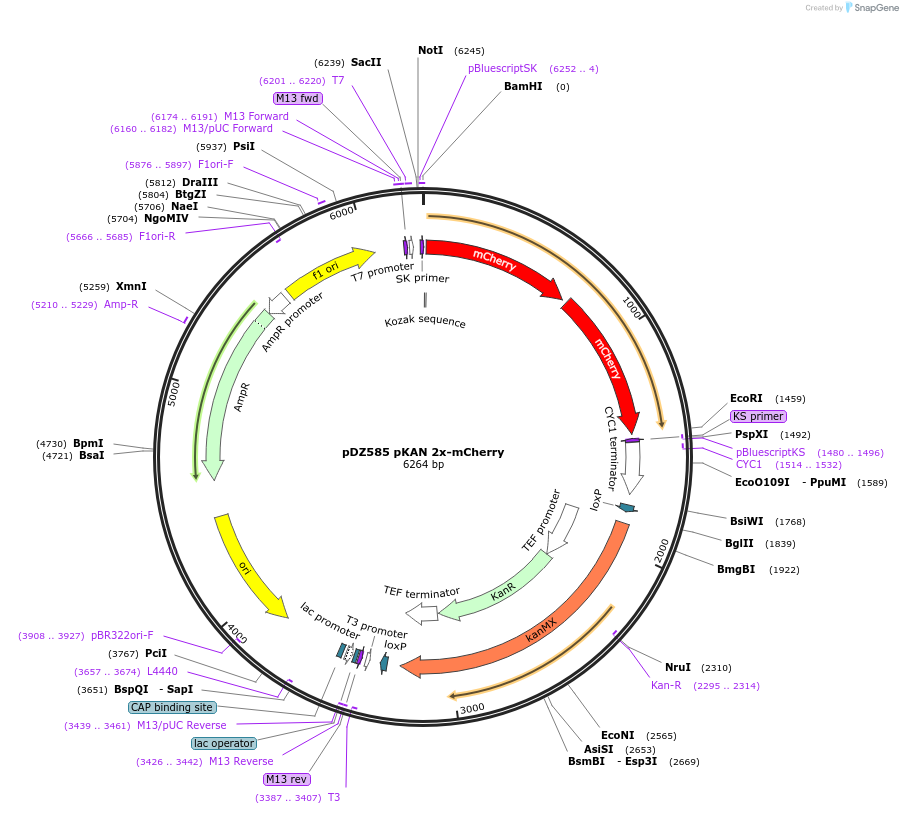

Map uploaded by the depositor.
