Sema3d(L)-Fc-His
(Plasmid
#72143)
-
PurposeExpresses the Sema3D protein (truncated at cleavage site P3; ie, long), C-terminally fused to the Fc region of human IgG1 + 6X histidine tag.
-
Depositing Lab
-

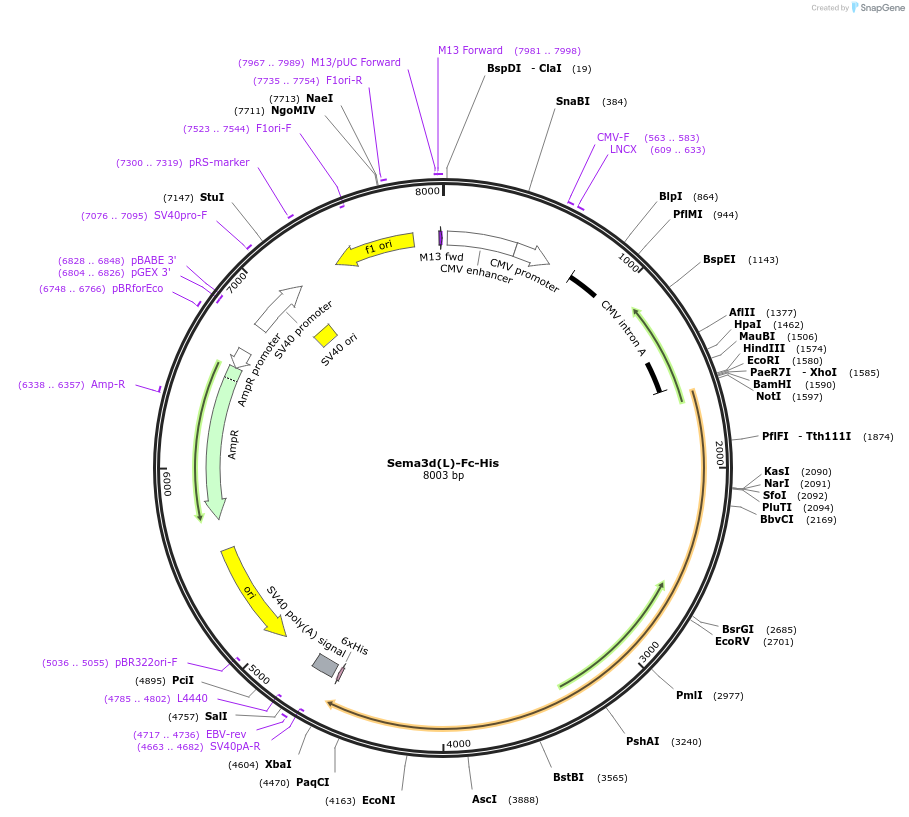

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 72143 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCMVi-SV40ori
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSema3d
-
Alt nameSemaphorin 3D
-
Alt nameNCBI gene ID 108151; Reference sequence NM_028882.4
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)2277
-
Entrez GeneSema3d (a.k.a. 4631426B19Rik)
- Promoter CMV
-
Tag
/ Fusion Protein
- Fc-His (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NotI (not destroyed)
- 3′ cloning site AscI (not destroyed)
- 5′ sequencing primer GTCAGAGGTAACTCCCGTTGC
- 3′ sequencing primer ATCATGAGGGTGTCCTTG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Sema3d(L)-Fc-His was a gift from Woj Wojtowicz (Addgene plasmid # 72143 ; http://n2t.net/addgene:72143 ; RRID:Addgene_72143) -
For your References section:
An extracellular biochemical screen reveals that FLRTs and Unc5s mediate neuronal subtype recognition in the retina. Visser JJ, Cheng Y, Perry SC, Chastain AB, Parsa B, Masri SS, Ray TA, Kay JN, Wojtowicz WM. Elife. 2015 Dec 3;4. pii: e08149. doi: 10.7554/eLife.08149. 10.7554/eLife.08149 PubMed 26633812
