p-attB-min.hsp70P-FRT-STOP#1-FRT-DamMyc[open]
(Plasmid
#71809)
-
PurposeGenerating transgenic flies for FLP-inducible DamID
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 71809 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUASTattB
-
Backbone manufacturer(GenBank EF362409.1)
- Backbone size w/o insert (bp) 8052
- Total vector size (bp) 10645
-
Vector typeInsect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemin.hsp70P-FRT-STOP#1-FRT-Dam-Myc[open]
-
Insert Size (bp)2593
Resource Information
-
A portion of this plasmid was derived from a plasmid made byBrian Sauer - pBS302 (Addgene plasmid# 11925)
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments

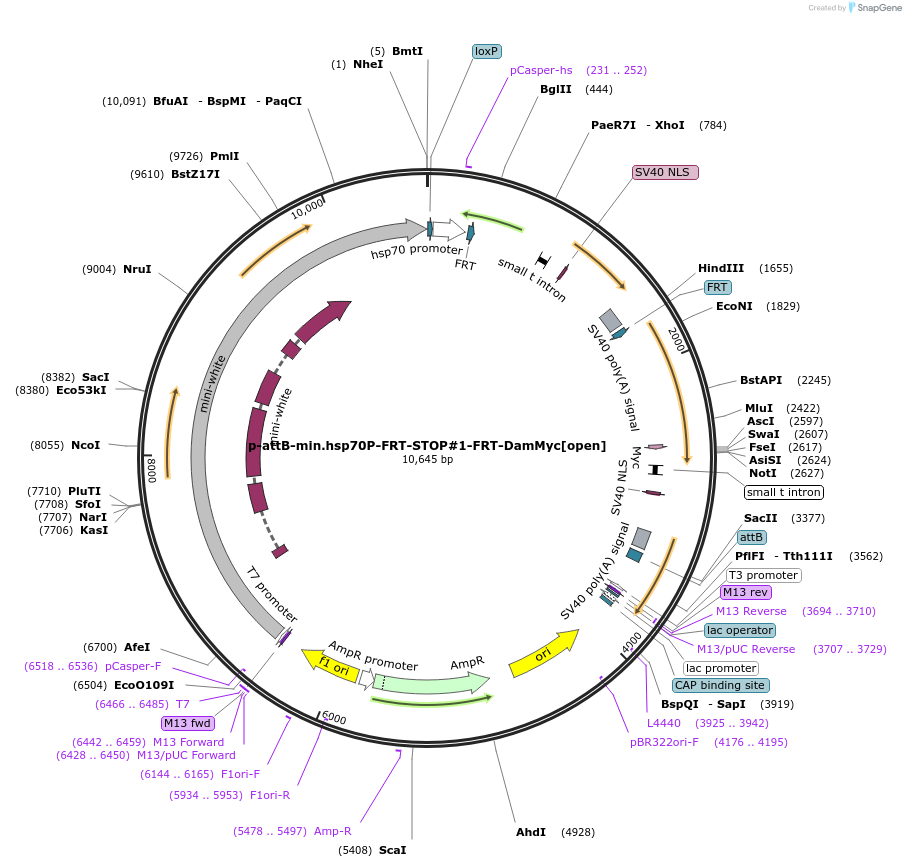

The p-attB-min.hsp70P-FRT-STOP#1-FRT-DamMyc[open] plasmid vector was constructed from the following elements: Drosophila minimal hsp70 promoter (“min.hsp70P”), STOP#1 cassette flanked by two unidirectional FRT sites, open reading frame encoding Dam-Myc fusion protein, polylinker consisting of AscI, SwaI, FseI, AsiSI and NotI sites, SV40 polyadenylation signal, attB site for phiC31 integrase-mediated transgenesis, pUC backbone, Drosophila mini-white marker and loxP site. The elements were assembled in the indicated order; the last five elements were taken as a whole from pUASTattB vector (Bischof et al., 2007, PMID=17360644; GenBank EF362409.1). The p-attB-min.hsp70P-FRT-STOP#1-FRT-DamMyc[open] vector is designed for cloning and expression of FLP-inducible N-terminal Dam fusion proteins.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
p-attB-min.hsp70P-FRT-STOP#1-FRT-DamMyc[open] was a gift from Bas van Steensel (Addgene plasmid # 71809 ; http://n2t.net/addgene:71809 ; RRID:Addgene_71809) -
For your References section:
Inducible DamID systems for genomic mapping of chromatin proteins in Drosophila. Pindyurin AV, Pagie L, Kozhevnikova EN, van Arensbergen J, van Steensel B. Nucleic Acids Res. 2016 Jul 8;44(12):5646-57. doi: 10.1093/nar/gkw176. Epub 2016 Mar 21. 10.1093/nar/gkw176 PubMed 27001518
