pET28a-MSP1D1deltaH4/2
(Plasmid
#71712)
-
PurposeMembrane scaffold protein (MSP), half of helix 4 truncated
-
Depositing Lab
-

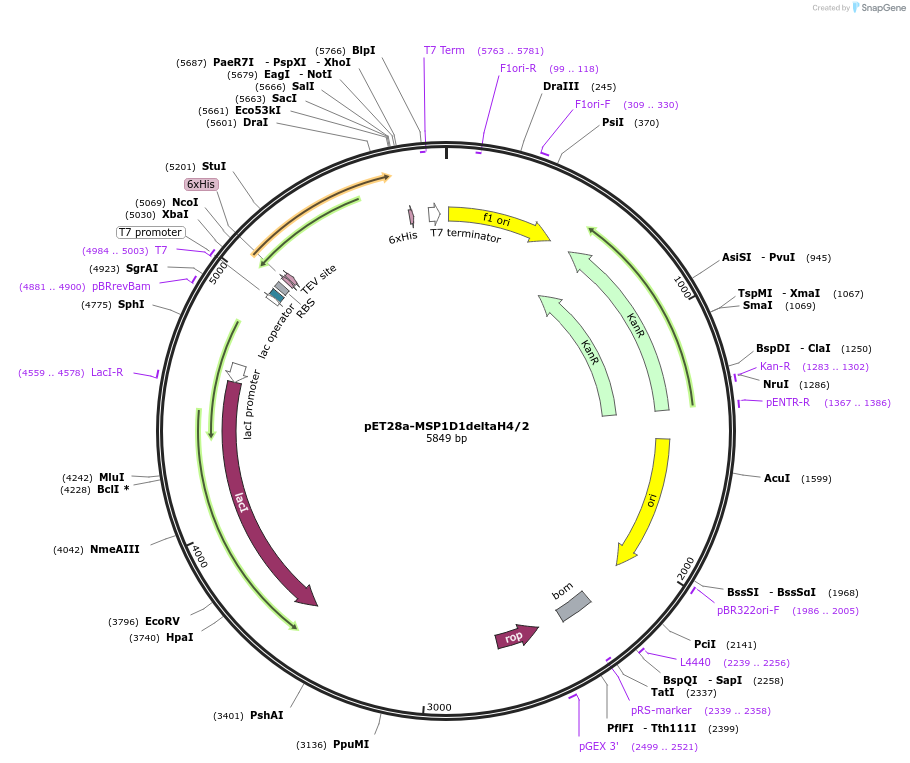

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 71712 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepET28a
-
Backbone manufacturerNovagen
- Backbone size w/o insert (bp) 5300
- Total vector size (bp) 5816
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameApolipoprotein A1
-
Alt nameMSP
-
SpeciesH. sapiens (human)
-
Insert Size (bp)543
-
Entrez GeneAPOA1 (a.k.a. AMYLD3, HPALP2, apo(a))
-
Tags
/ Fusion Proteins
- 6xHis (N terminal on insert)
- TEV site (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NcoI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer T7 promotor
- 3′ sequencing primer T7 terminator (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET28a-MSP1D1deltaH4/2 was a gift from Gerhard Wagner (Addgene plasmid # 71712 ; http://n2t.net/addgene:71712 ; RRID:Addgene_71712) -
For your References section:
Optimized phospholipid bilayer nanodiscs facilitate high-resolution structure determination of membrane proteins. Hagn F, Etzkorn M, Raschle T, Wagner G. J Am Chem Soc. 2013 Feb 6;135(5):1919-25. doi: 10.1021/ja310901f. Epub 2013 Jan 25. 10.1021/ja310901f PubMed 23294159
