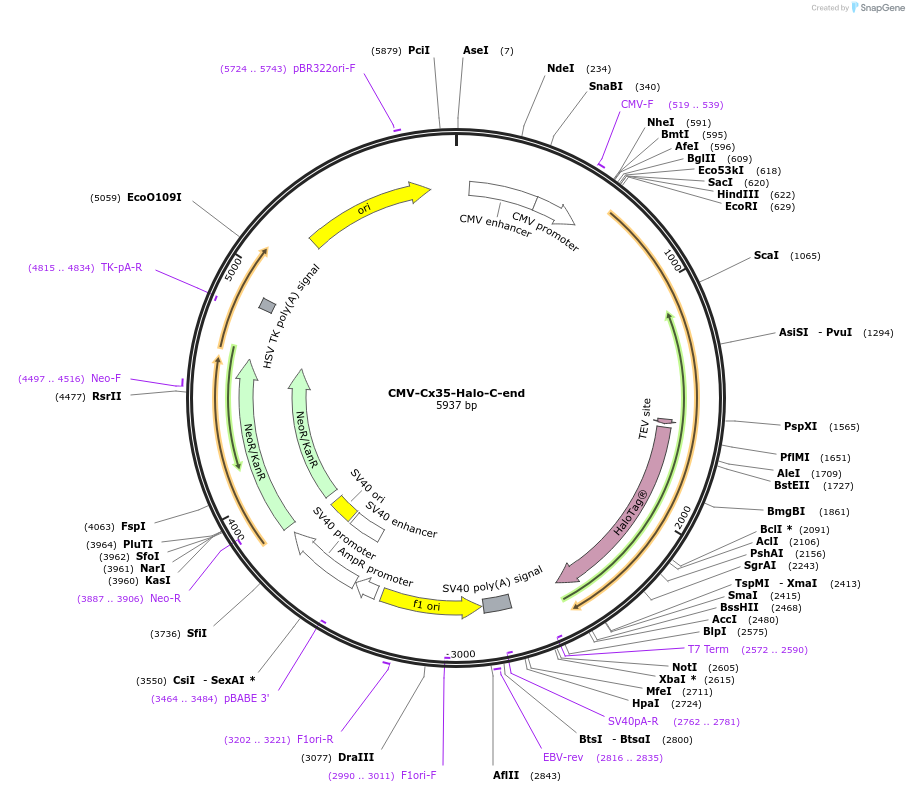

CMV-Cx35-Halo-C-end
(Plasmid #71512)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 71512 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3961
  • Total vector size (bp) 5937
  • Modifications to backbone
    EGFP removed; using backbone as CMV vector.
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Connexin 35
  • Alt name
    Cx35
  • Alt name
    Connexin 36
  • Alt name
    Cx36
  • Species
    Morone americana (Perch)
  • Insert Size (bp)
    2053
  • GenBank ID
    AF059183.1
  • Tag / Fusion Protein
    • HaloTag (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV forward
  • 3′ sequencing primer SV40 polyA
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

C-terminal EGFP fusion on Cx35 replaced with HaloTag by cutting with SmaI and NotI and inserting HaloTag cut from pHaloTag-N with XhoI, ends filled with Klenow, and NotI.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CMV-Cx35-Halo-C-end was a gift from John O'Brien (Addgene plasmid # 71512 ; http://n2t.net/addgene:71512 ; RRID:Addgene_71512)
  • For your References section:

    Two-color fluorescent analysis of connexin 36 turnover: relationship to functional plasticity. Wang HY, Lin YP, Mitchell CK, Ram S, O'Brien J. J Cell Sci. 2015 Nov 1;128(21):3888-97. doi: 10.1242/jcs.162586. Epub 2015 Sep 10. 10.1242/jcs.162586 PubMed 26359298
