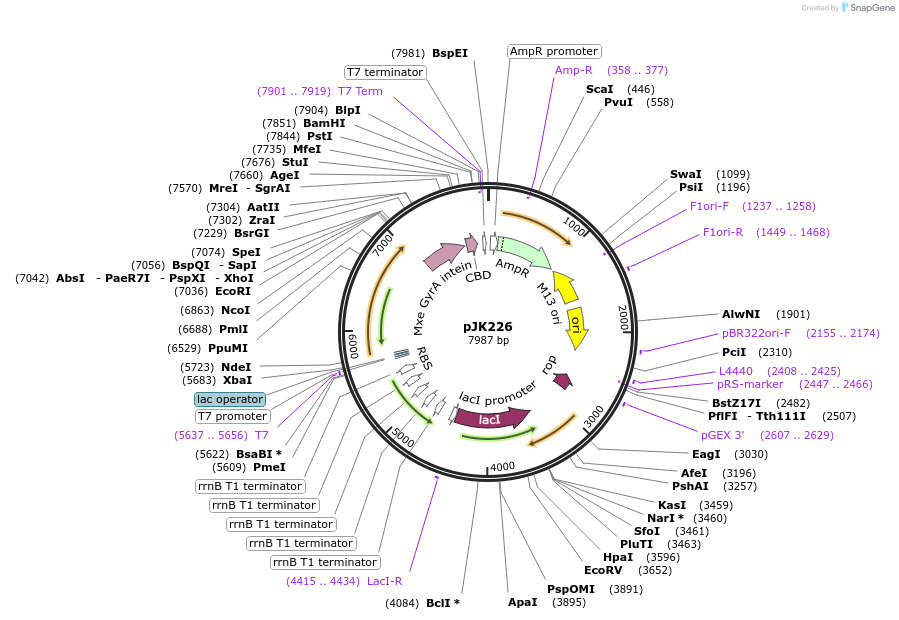

pJK226
(Plasmid #71125)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 71125 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pTWIN1
  • Backbone manufacturer
    NEB
  • Backbone size w/o insert (bp) 7375
  • Total vector size (bp) 7987
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    citrate synthase
  • Alt name
    aarA
  • Alt name
    gltA
  • Species
    Acetobacter aceti 1023
  • GenBank ID
    ABF85671 KDE21011
  • Promoter T7

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer T7 promoter
  • 3′ sequencing primer Mxe intein reverse primer
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJK226 was a gift from T. J. Kappock (Addgene plasmid # 71125 ; http://n2t.net/addgene:71125 ; RRID:Addgene_71125)

  • For your References section:

    Structure of a NADH-insensitive hexameric citrate synthase that resists acid inactivation. Francois JA, Starks CM, Sivanuntakorn S, Jiang H, Ransome AE, Nam JW, Constantine CZ, Kappock TJ. Biochemistry. 2006 Nov 14;45(45):13487-99. 10.1021/bi061083k PubMed 17087502
