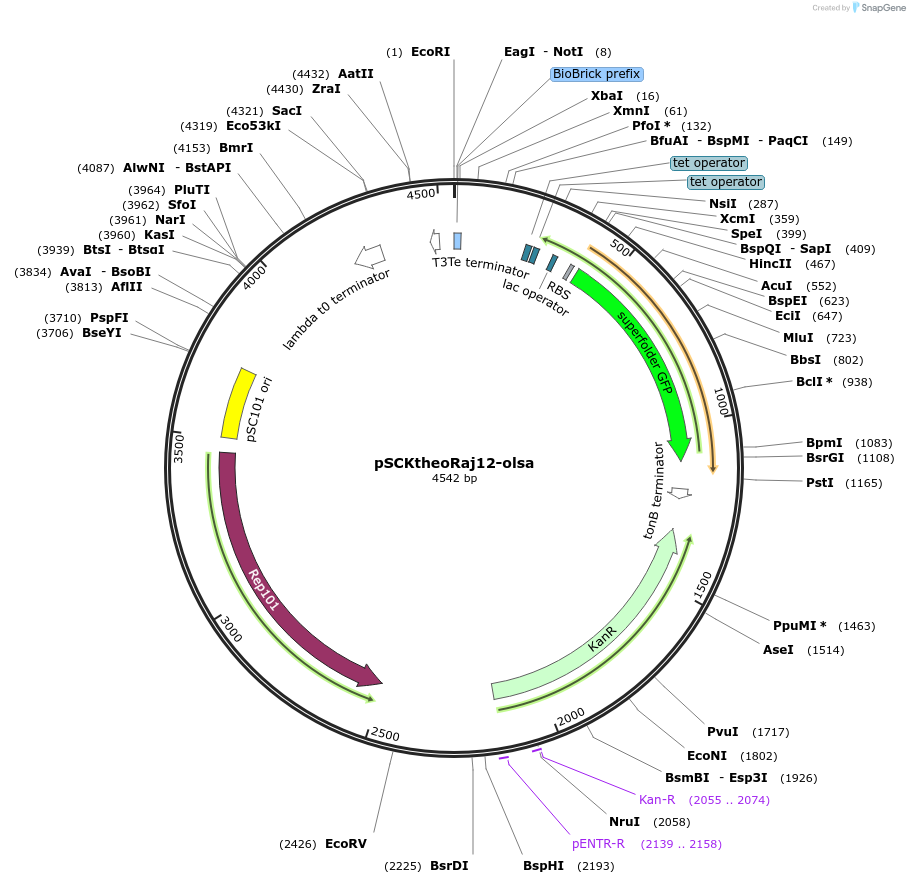

pSCKtheoRaj12-olsa
(Plasmid #69940)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 69940 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSTC2
  • Backbone size w/o insert (bp) 3376
  • Total vector size (bp) 4542
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    Low Copy

Gene/Insert 1

  • Gene/Insert name
    TheoHHAzRaj12,cisRaj12,sfGFP
  • Species
    Synthetic
  • Insert Size (bp)
    1166

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer tgccacctgacgtctaagaa
  • 3′ sequencing primer gctcactcaaaggcggtaat
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    theoHHAzRaj12,cisRaj12-sfGFP
  • Species
    Synthetic
  • Insert Size (bp)
    1166

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please check Genbank file for complete sequence annotation.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSCKtheoRaj12-olsa was a gift from Alfonso Jaramillo (Addgene plasmid # 69940 ; http://n2t.net/addgene:69940 ; RRID:Addgene_69940)

  • For your References section:

    Dynamic signal processing by ribozyme-mediated RNA circuits to control gene expression. Shen S, Rodrigo G, Prakash S, Majer E, Landrain TE, Kirov B, Daros JA, Jaramillo A. Nucleic Acids Res. 2015 May 26;43(10):5158-70. doi: 10.1093/nar/gkv287. Epub 2015 Apr 27. 10.1093/nar/gkv287 PubMed 25916845
