FUW TetO NET1A-V5 S46A
(Plasmid
#69829)
-
PurposeExpresses NET1A-V5 in mammalian cells in a doxycycline inducible manner
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 69829 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

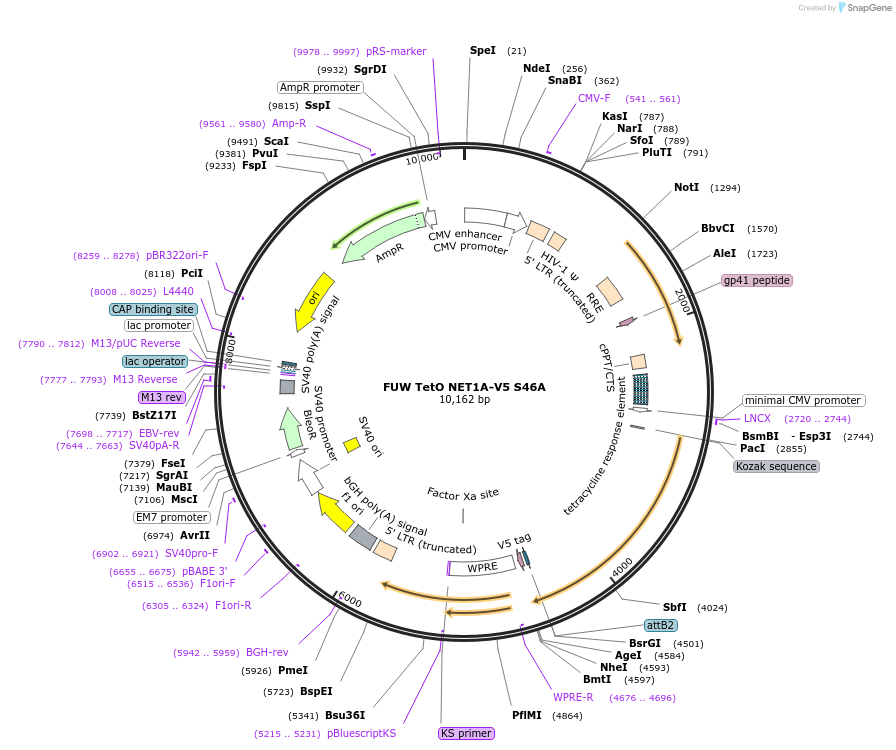

Backbone
-
Vector backboneFUW TetO
- Backbone size w/o insert (bp) 8431
- Total vector size (bp) 10163
-
Vector typeMammalian Expression, Lentiviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNeuroepithelial cell-transforming gene 1 protein A
-
Alt nameNET1A (short isoform of NET1), ARHGEF8
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1732
-
MutationS46A
-
GenBank IDBC010285
-
Entrez GeneNET1 (a.k.a. ARHGEF8, NET1A)
- Promoter minimal CMV promoter with tetracycline operator
-
Tag
/ Fusion Protein
- v5 (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site pac1 (not destroyed)
- 3′ cloning site Nhe1 (not destroyed)
- 5′ sequencing primer GTCAGATCGCCTGGAG
- 3′ sequencing primer GACAACGGGCCACAACTCCTC or CAT AGC GTA AAA GGA GCA ACA TAG (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byBackbone is from Brambrink et al, 2008
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
cDNA is from the Orfeome library (Open Biosystems). Backbone is from Brambrink et al, 2008
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
FUW TetO NET1A-V5 S46A was a gift from Anne Brunet (Addgene plasmid # 69829 ; http://n2t.net/addgene:69829 ; RRID:Addgene_69829) -
For your References section:
Identification of AMPK Phosphorylation Sites Reveals a Network of Proteins Involved in Cell Invasion and Facilitates Large-Scale Substrate Prediction. Schaffer BE, Levin RS, Hertz NT, Maures TJ, Schoof ML, Hollstein PE, Benayoun BA, Banko MR, Shaw RJ, Shokat KM, Brunet A. Cell Metab. 2015 Nov 3;22(5):907-21. doi: 10.1016/j.cmet.2015.09.009. Epub 2015 Oct 8. 10.1016/j.cmet.2015.09.009 PubMed 26456332
