p2,0_3E5E_luciferase
(Plasmid #69358)

Ordering

This material is available to academics and nonprofits only. Availability may be limited outside the U.S. Please log in for more information.
Item Catalog # Description Quantity Price (USD)
Plasmid 69358 Standard format: Plasmid sent in bacteria as agar stab 1 $85

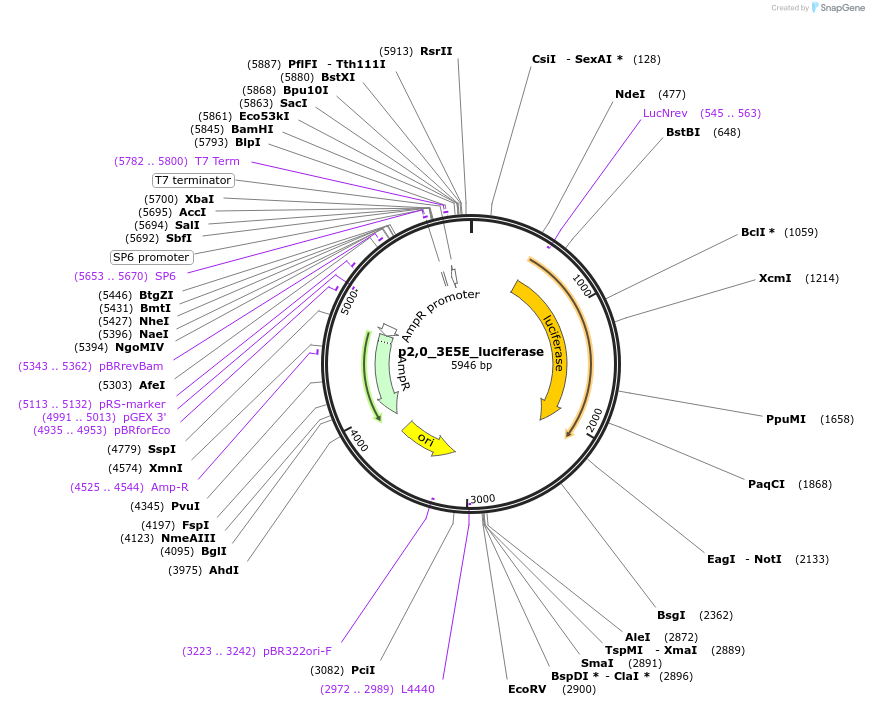

Backbone

  • Vector backbone
    p2,0
  • Backbone manufacturer
    Andrew Ball, University of Alabama at Birmingham
  • Backbone size w/o insert (bp) 3077
  • Total vector size (bp) 7977
  • Vector type
    T7

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    3E5E luciferase minigenome
  • Insert Size (bp)
    2869
  • Promoter T7

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site RsRII (not destroyed)
  • 3′ cloning site XmaI (not destroyed)
  • 5′ sequencing primer ATT GTA TGG GAT CTG ATC TGG
  • 3′ sequencing primer GCC AAC TCA GCT TCC TTT CGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p2,0_3E5E_luciferase was a gift from Elke Mühlberger (Addgene plasmid # 69358 ; http://n2t.net/addgene:69358 ; RRID:Addgene_69358)
  • For your References section:

    The L-VP35 and L-L interaction domains reside in the amino terminus of the Ebola virus L protein and are potential targets for antivirals. Trunschke M, Conrad D, Enterlein S, Olejnik J, Brauburger K, Muhlberger E. Virology. 2013 Jul 5;441(2):135-45. doi: 10.1016/j.virol.2013.03.013. Epub 2013 Apr 11. 10.1016/j.virol.2013.03.013 PubMed 23582637
