pSR47
(Plasmid
#69258)
-
Purposepmyo-3::CRE for integration on ttTi14024, Chr X
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 69258 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepCFJ355
-
Backbone manufacturerErik Jorgensen
- Backbone size w/o insert (bp) 8941
- Total vector size (bp) 12454
-
Vector typeWorm Expression, Cre/Lox ; MosSCI
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCre recombinase
-
Alt nameCre recombinase
-
SpeciesC. elegans (nematode)
-
Insert Size (bp)1134
-
Mutationcodon-optimzed index 1.0
- Promoter myo-3
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer M13 forward
- 3′ sequencing primer N/A (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSR47 was a gift from Sander van den Heuvel (Addgene plasmid # 69258 ; http://n2t.net/addgene:69258 ; RRID:Addgene_69258) -
For your References section:
G1/S Inhibitors and the SWI/SNF Complex Control Cell-Cycle Exit during Muscle Differentiation. Ruijtenberg S, van den Heuvel S. Cell. 2015 Jul 16;162(2):300-13. doi: 10.1016/j.cell.2015.06.013. Epub 2015 Jul 2. 10.1016/j.cell.2015.06.013 PubMed 26144318

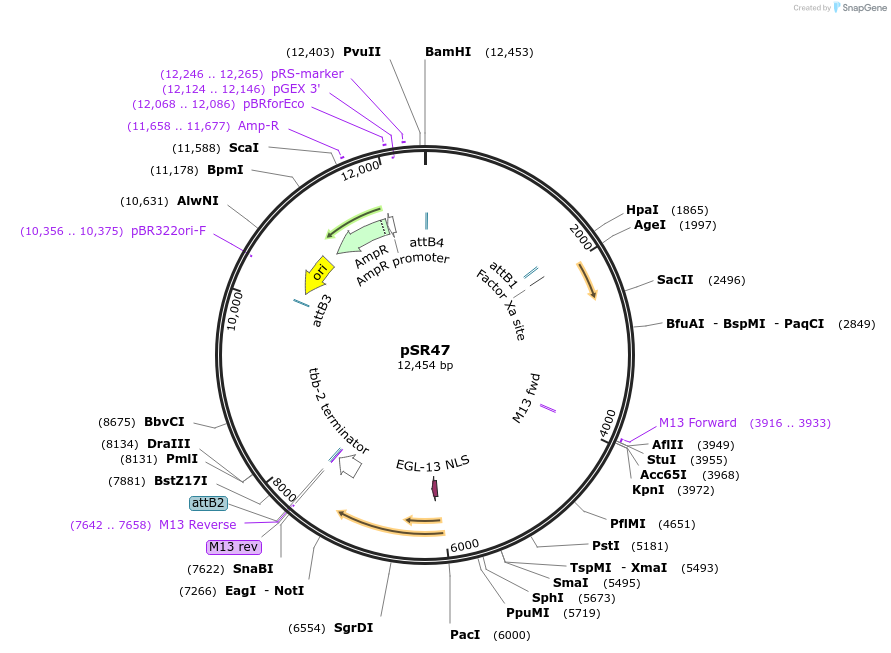

Map uploaded by the depositor.
