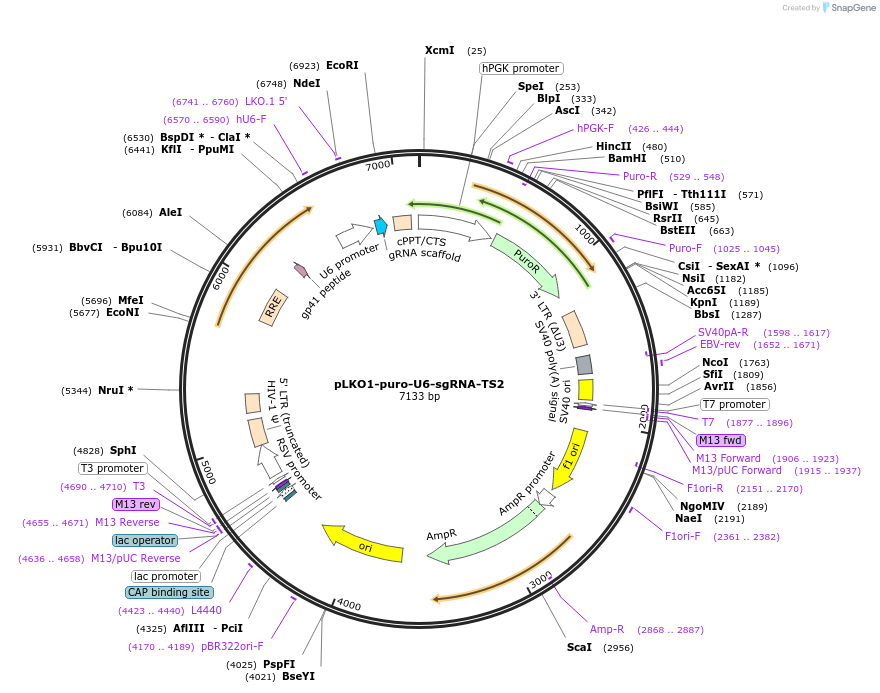

pLKO1-puro-U6-sgRNA-TS2
(Plasmid #69234)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 69234 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLKO.1
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TS2 sgRNA
  • gRNA/shRNA sequence
    GACCCCCTCCACCCCGCCTC
  • Species
    H. sapiens (human)
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BfuAI (destroyed during cloning)
  • 3′ cloning site BfuAI (destroyed during cloning)
  • 5′ sequencing primer CGTGACGTAGAAAGTAATAATTTC
  • 3′ sequencing primer CCTCGAGCCGCGGCCAAAG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLKO1-puro-U6-sgRNA-TS2 was a gift from Scot Wolfe (Addgene plasmid # 69234 ; http://n2t.net/addgene:69234 ; RRID:Addgene_69234)

  • For your References section:

    DNA-binding-domain fusions enhance the targeting range and precision of Cas9. Bolukbasi MF, Gupta A, Oikemus S, Derr AG, Garber M, Brodsky MH, Zhu LJ, Wolfe SA. Nat Methods. 2015 Oct 19. doi: 10.1038/nmeth.3624. 10.1038/nmeth.3624 PubMed 26480473
