sfGFP-Cx43K258stop
(Plasmid #69025)

• Purpose: Expresses rat Cx43 (Gja1 CDS) truncated at amino acid 258 and tagged with sfGFP (V206-version) on the N-terminus. CMV promoter.
• Depositing Lab: David Spray
• Publication: Stout RF et al J Biol Chem. 2015 Aug 11. pii: jbc.M115.659979.

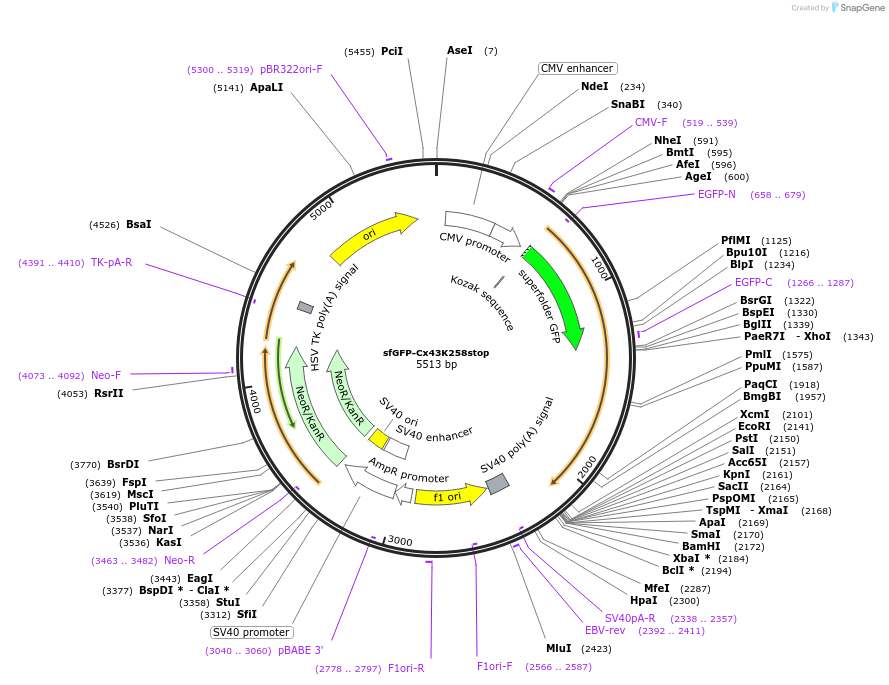

Backbone

• Vector backbone: EGFP-C1
• Total vector size (bp): 5514
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): JM109
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Cx43
• Species: R. norvegicus (rat)
• Insert Size (bp): 768
• Mutation: non-monomerized sfGFP fused in frame to N-terminus of truncated Cx43delete codons 258-381 of the Cx43 CDS
• Entrez Gene: Gja1 (a.k.a. Cx43, Cxnk1)
• Promoter: CMV
• Tag / Fusion Protein:
  • super folder GFP (N terminal on insert)

Cloning Information

• Cloning method: Ligation Independent Cloning
• 5′ sequencing primer: CMV
• 3′ sequencing primer: C1N1-rev: ACCTCTACAAATGTGGTATGGCTGATTATG

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Note all connexins tested that have a fluorescent protein fused to the connexin amino-terminus do not form functional channels. This plasmid forms gap junction plaque structures but does not produce intercellular coupling.
