pAD/CMV/V5-DEST-Cdc42-2G
(Plasmid #68812)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 68812 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

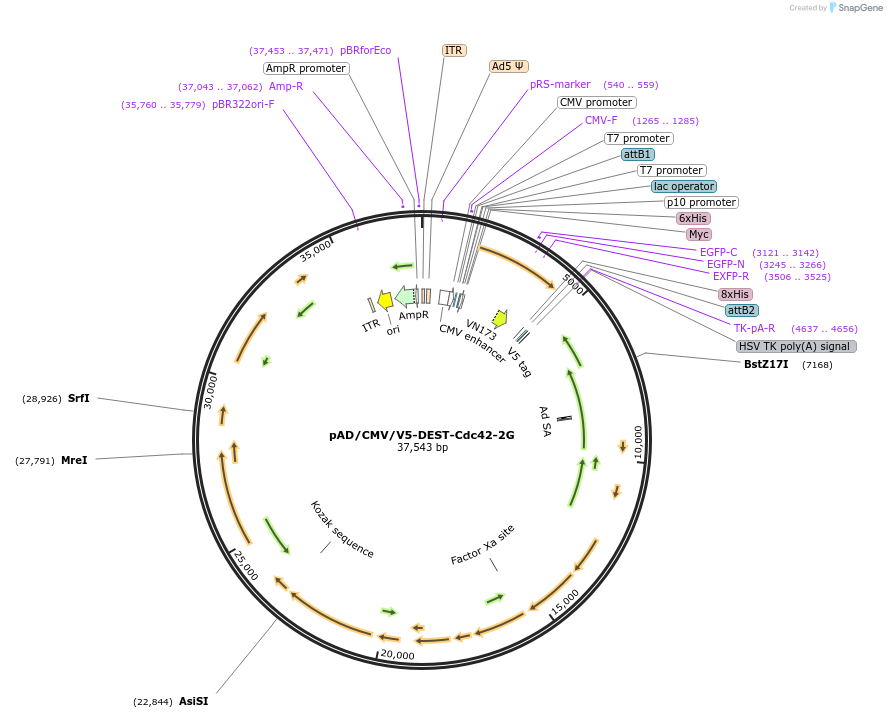

Backbone

  • Vector backbone
    pAD/CMV/V5-DEST
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 36686
  • Total vector size (bp) 37347
  • Vector type
    Mammalian Expression, Adenoviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Cdc42 activation reporter
  • Species
    Synthetic
  • Insert Size (bp)
    2670
  • Promoter CMV
  • Tags / Fusion Proteins
    • His (N terminal on insert)
    • Myc (N terminal on insert)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer ACCGAGGAGAGGGTTAGGGAT
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAD/CMV/V5-DEST-Cdc42-2G was a gift from Olivier Pertz (Addgene plasmid # 68812 ; http://n2t.net/addgene:68812 ; RRID:Addgene_68812)

  • For your References section:

    Spatio-temporal co-ordination of RhoA, Rac1 and Cdc42 activation during prototypical edge protrusion and retraction dynamics. Martin K, Reimann A, Fritz RD, Ryu H, Jeon NL, Pertz O. Sci Rep. 2016 Feb 25;6:21901. doi: 10.1038/srep21901. 10.1038/srep21901 PubMed 26912264
