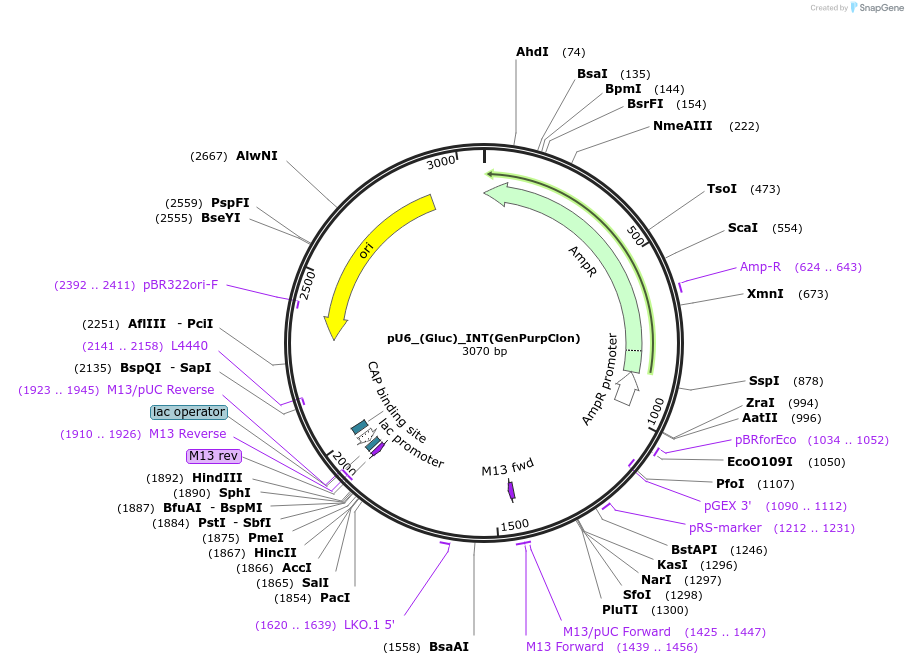

pU6_(Gluc)_INT(GenPurpClon)
(Plasmid #68433)

• Purpose: General Purpose cloning vector for "INT"-like constructs under U6-promoter expression.
• Depositing Lab: John Rinn
• Publication: Shechner et al Nat Methods. 2015 Jul;12(7):664-70. doi: 10.1038/nmeth.3433. Epub 2015 Jun 1.

Backbone

• Vector backbone: pNEB193
• Backbone manufacturer: NEB
• Vector type: Mammalian Expression, CRISPR ; Cloning vector for generating INT-like constructs

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: INT construct
• gRNA/shRNA sequence: gRNA: GATCTAGATACGACTCACTAT
• Species: Synthetic
• Promoter: human U6

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: Unknown (unknown if destroyed)
• 3′ cloning site: Unknown (unknown if destroyed)
• 5′ sequencing primer: LKO.1 5
• 3′ sequencing primer: M13R

Resource Information

• Supplemental Documents:
  • pU6_(Gluc)_INT(GenPurpClon) genbank
• Articles Citing this Plasmid:
  • 2 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

sgRNA targets the (ATCTAGATACGACTCACTAT) sequence in the Gluc reporter. Contains an internal cloning site into which "accessory domain," can be inserted. Cut with BbsI. More details outlined in the Online Methods section.
