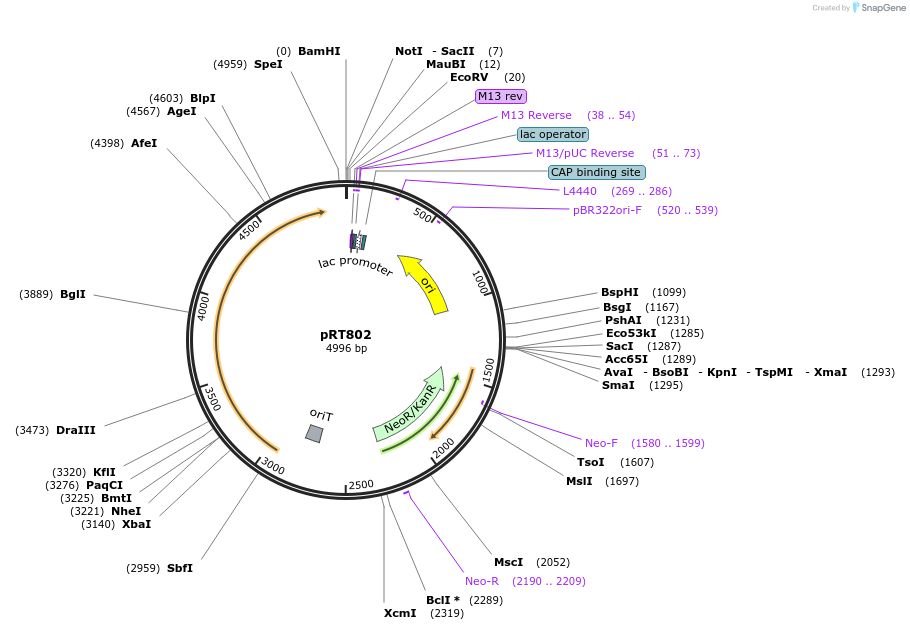

pRT802
(Plasmid #68113)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 68113 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pSET152
  • Modifications to backbone
    PhiC31 int/attP replaced with phiBT1 int/attP
  • Vector type
    Streptomyces integrating vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    aac3(IV)
  • Alt name
    apramycin fragment
  • Species
    E. coli
  • Insert Size (bp)
    29

Gene/Insert 2

  • Gene/Insert name
    aph11
  • Alt name
    aminoglycoside phosphotransferase
  • Species
    transposon Tn5
  • Insert Size (bp)
    925

Gene/Insert 3

  • Gene/Insert name
    oriT
  • Alt name
    origin of transfer
  • Species
    E. coli

Gene/Insert 4

  • Gene/Insert name
    attP
  • Alt name
    phage attachment site
  • Species
    bacteriophage phiBT1
  • Insert Size (bp)
    51

Gene/Insert 5

  • Gene/Insert name
    int
  • Alt name
    phiBT1 integrase
  • Species
    bacteriophage phiBT1
  • Insert Size (bp)
    1430

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For research using this plasmid, please acknowledge the depositing laboratory and associated citation.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRT802 was a gift from Maggie Smith (Addgene plasmid # 68113 ; http://n2t.net/addgene:68113 ; RRID:Addgene_68113)
  • For your References section:

    Integration site for Streptomyces phage phiBT1 and development of site-specific integrating vectors. Gregory MA, Till R, Smith MC. J Bacteriol. 2003 Sep;185(17):5320-3. PubMed 12923110
