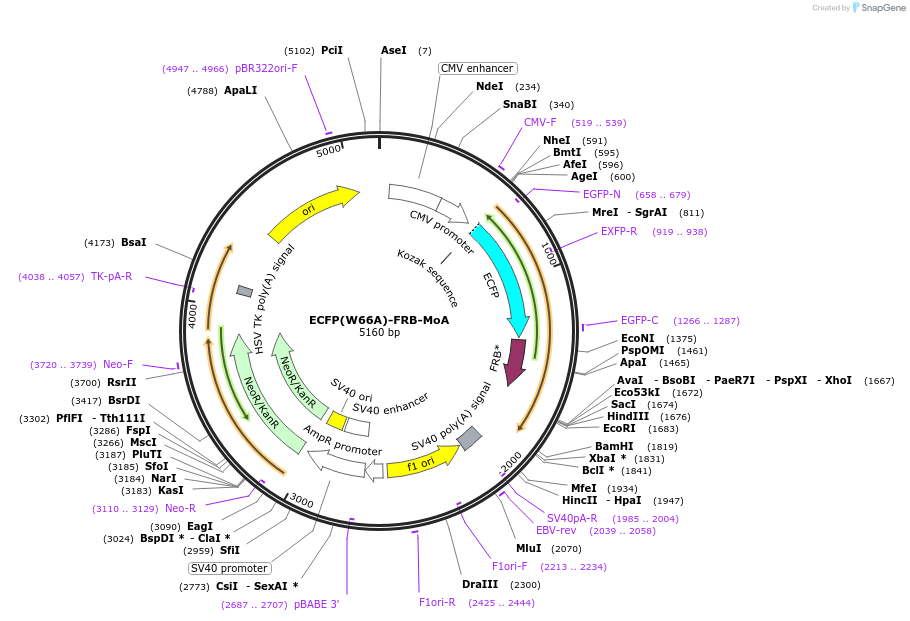

ECFP(W66A)-FRB-MoA
(Plasmid #67904)

• Purpose: Expresses a Mitochondria located FRB domain in mammalian cells (the ECFP is not fluorescent)
• Depositing Lab: Dorus Gadella
• Publication: van_Unen et al Scientific Reports 5, Article number: 14693 (2015)

Backbone

• Vector backbone: pEGFP-C1
• Backbone manufacturer: Clontech
• Total vector size (bp): 5160
• Vector type: Mammalian Expression, Synthetic Biology
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: ECFP(W66A)-FRB-MoA
• Species: Synthetic
• Insert Size (bp): 1206
• Promoter: CMV

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: AgeI (not destroyed)
• 3′ cloning site: BamHI (not destroyed)
• 5′ sequencing primer: CMV

Resource Information

• A portion of this plasmid was derived from a plasmid made by: This plasmid is modified from CFP-FRB-MOA, published by Komatsu et al. (https://www.ncbi.nlm.nih.gov/pubmed/20154678)
• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
