PurposeMammalian expression vector driving APEX2-GBP (EM peroxidase marker fused to GFP-targeting nanobody).
-
Depositing Lab
-
Sequence Information
-
Sequences (4) — Accept Affinity Reagent Sequence Policy
-
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 67651 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepCSDEST2
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameAPEX2-GBP
-
SpeciesSynthetic
- Promoter CMV
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer SP6
- 3′ sequencing primer T3 (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
APEX2-GBP was a gift from Rob Parton (Addgene plasmid # 67651 ; http://n2t.net/addgene:67651 ; RRID:Addgene_67651) -
For your References section:
Modular Detection of GFP-Labeled Proteins for Rapid Screening by Electron Microscopy in Cells and Organisms. Ariotti N, Hall TE, Rae J, Ferguson C, McMahon KA, Martel N, Webb RE, Webb RI, Teasdale RD, Parton RG. Dev Cell. 2015 Nov 23;35(4):513-25. doi: 10.1016/j.devcel.2015.10.016. Epub 2015 Nov 12. 10.1016/j.devcel.2015.10.016 PubMed 26585296

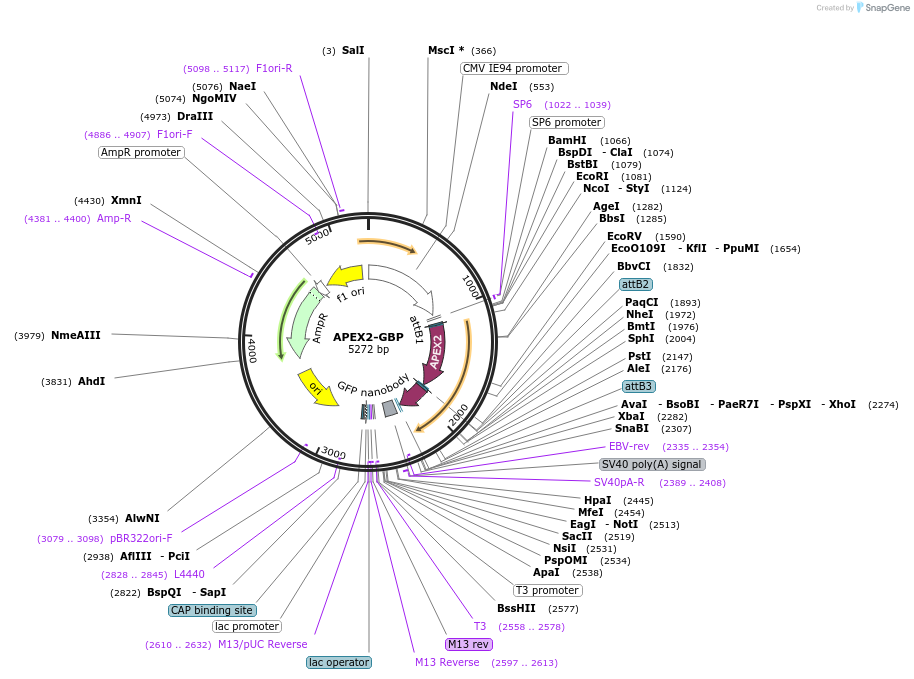

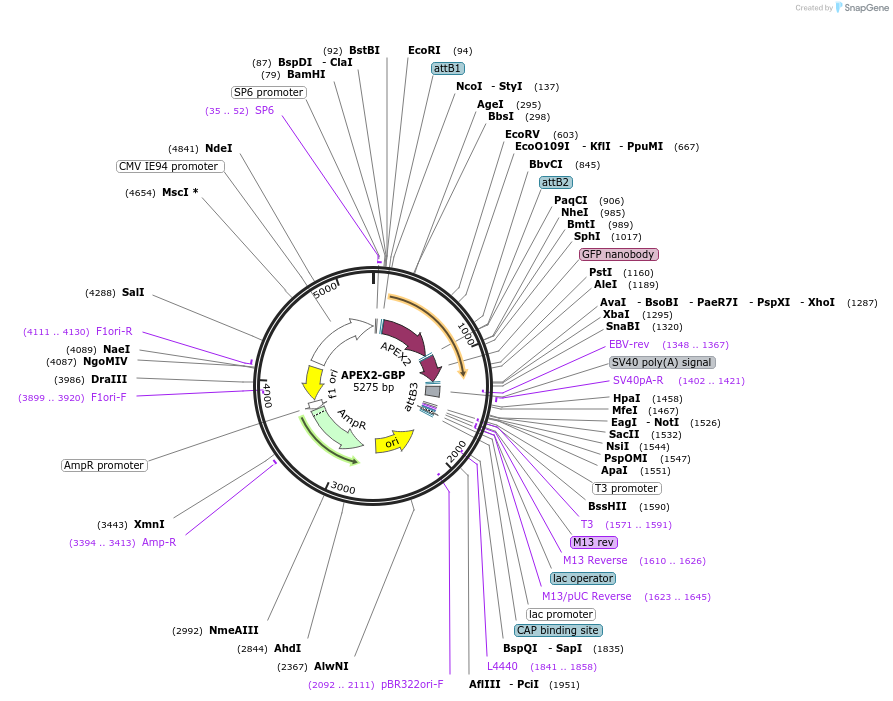

Map uploaded by the depositor.
