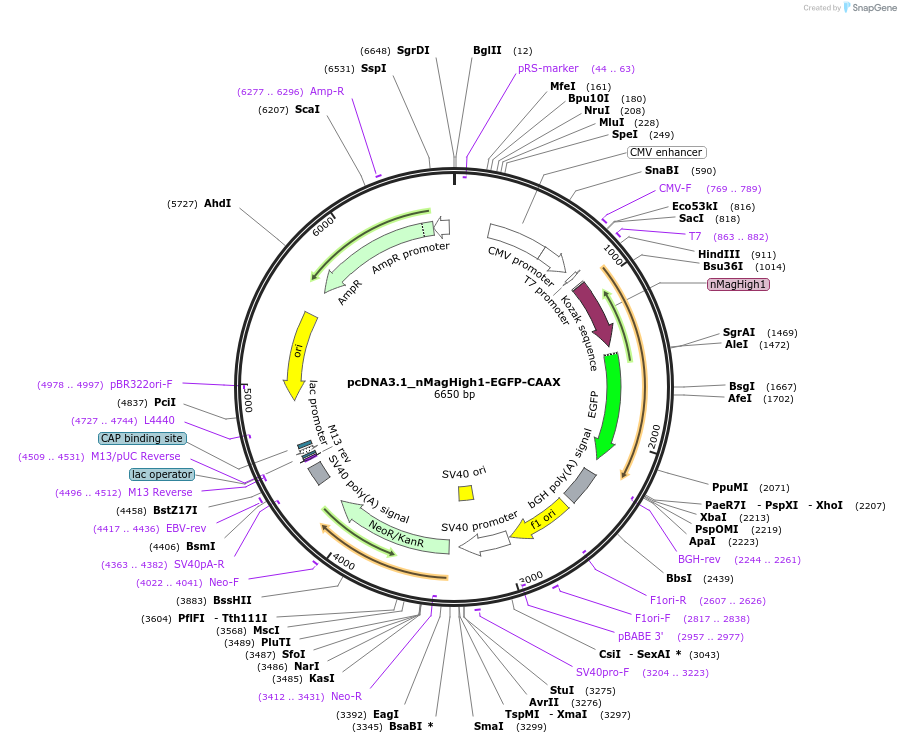

pcDNA3.1_nMagHigh1-EGFP-CAAX
(Plasmid #67300)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 67300 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1(+)
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5354
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    nMagHigh1-EGFP-CAAX
  • Species
    Synthetic
  • Insert Size (bp)
    1290
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH-rev
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1_nMagHigh1-EGFP-CAAX was a gift from Moritoshi Sato (Addgene plasmid # 67300 ; http://n2t.net/addgene:67300 ; RRID:Addgene_67300)

  • For your References section:

    Engineered pairs of distinct photoswitches for optogenetic control of cellular proteins. Kawano F, Suzuki H, Furuya A, Sato M. Nat Commun. 2015 Feb 24;6:6256. doi: 10.1038/ncomms7256. 10.1038/ncomms7256 PubMed 25708714
