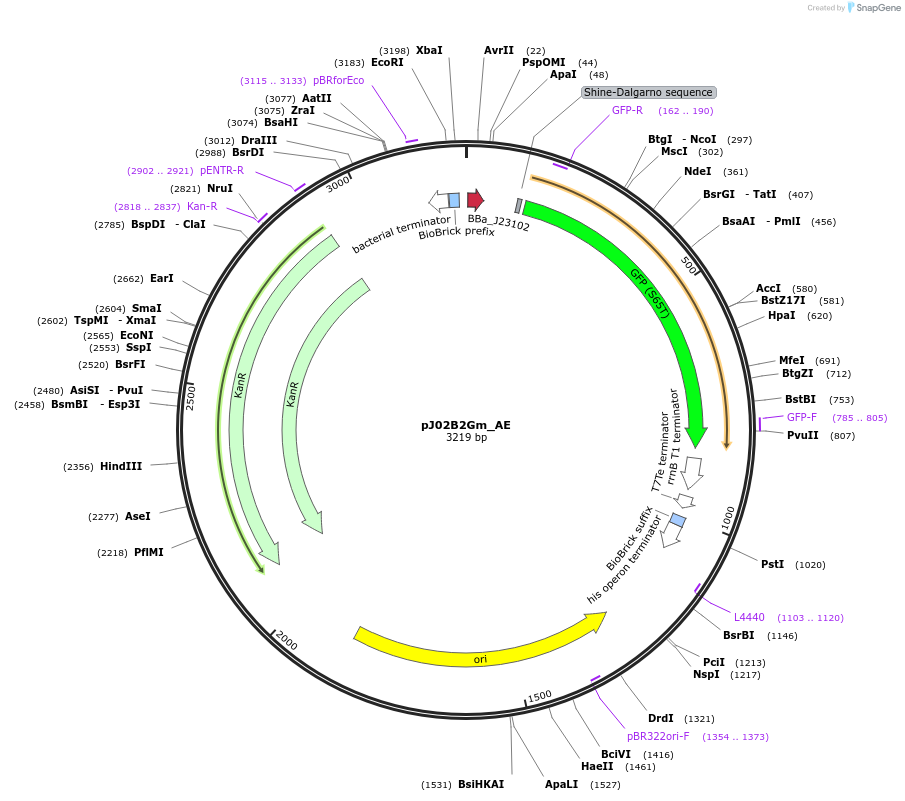

pJ02B2Gm_AE
(Plasmid
#66063)
-
PurposeMoClo Transcriptional Unit: FACS Standard Color Controls - High GFP expression cassette - Kanamycin plasmid [A:J23102:B:BCD2:C:E0040m:D:B0015:E]
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 66063 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneDVK
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameFACS Controls
-
Alt nameTranscriptional Unit
-
SpeciesSynthetic
Cloning Information
- Cloning method Unknown
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please note the fusion site D (AGGT) appears twice between the GFP CDS and the terminator. This duplication has no affect on plasmid function.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJ02B2Gm_AE was a gift from Douglas Densmore (Addgene plasmid # 66063 ; http://n2t.net/addgene:66063 ; RRID:Addgene_66063) -
For your References section:
CIDAR MoClo: Improved MoClo Assembly Standard and New E. coli Part Library Enable Rapid Combinatorial Design for Synthetic and Traditional Biology. Iverson SV, Haddock TL, Beal J, Densmore DM. ACS Synth Biol. 2016 Jan 15;5(1):99-103. doi: 10.1021/acssynbio.5b00124. Epub 2015 Nov 4. 10.1021/acssynbio.5b00124 PubMed 26479688
