FUGW-pHRed
(Plasmid #65742)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 65742 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

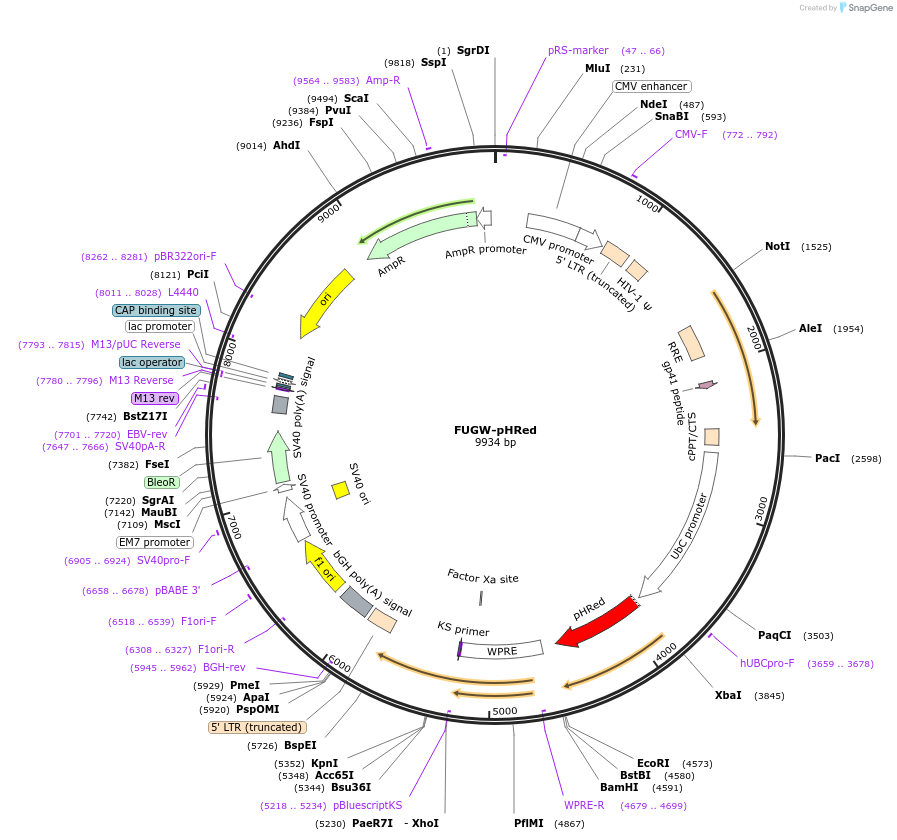

Backbone

  • Vector backbone
    FUGW
  • Backbone size w/o insert (bp) 9200
  • Total vector size (bp) 9900
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    pHRed
  • Species
    Synthetic
  • Insert Size (bp)
    710
  • Promoter hUbiC

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer GGTAGGCTCTCCTGAATC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    FUGW-pHRed was a gift from Mathew Tantama (Addgene plasmid # 65742 ; http://n2t.net/addgene:65742 ; RRID:Addgene_65742)

  • For your References section:

    Imaging energy status in live cells with a fluorescent biosensor of the intracellular ATP-to-ADP ratio. Tantama M, Martinez-Francois JR, Mongeon R, Yellen G. Nat Commun. 2013;4:2550. doi: 10.1038/ncomms3550. 10.1038/ncomms3550 PubMed 24096541
