pIK208
(Plasmid #65630)

• Purpose: sgRNA targeting dpy-10 (Arribere et al., 2014) expressed from a C. elegans U6 promoter (Friedland et al., 2013), in a "flipped and extended" sgRNA backbone (Chen et al., 2013)"
• Depositing Lab: Iskra Katic
• Publication: Katic et al G3 (Bethesda). 2015 Jun 3. pii: g3.115.019273. doi: 10.1534/g3.115.019273.

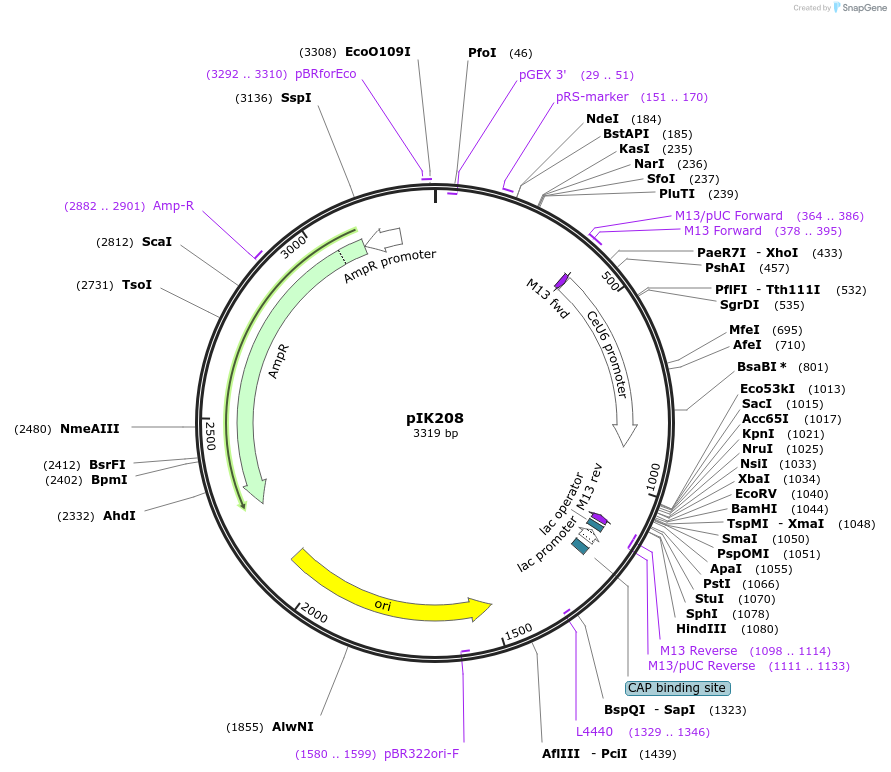

Backbone

• Vector backbone: pUC57
• Backbone manufacturer: Genscript
• Backbone size w/o insert (bp): 2710
• Total vector size (bp): 3319
• Vector type: Worm Expression, CRISPR

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): XL1 Blue
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: U6 promoter::dpy-10 sgRNA with a "flipped and extended" sgRNA backbone
• Species: C. elegans (nematode)
• Insert Size (bp): 613

Cloning Information

• Cloning method: Gateway Cloning
• 5′ sequencing primer: M13F
• 3′ sequencing primer: M13R

Resource Information

• A portion of this plasmid was derived from a plasmid made by: The U6 promoter was received from the Calarco lab, through Addgene (#46169). The sgRNA backbone was synthesized by IDT.
• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
