th-P2A-Gal4 donor
(Plasmid
#65563)
-
PurposeIntron targeting-mediated Gal4 knockin at the zebrafish th locus.
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 65563 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonePMD-19-T
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 2692
- Total vector size (bp) 5429
-
Vector typezebrafish injection
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameth-P2A-Gal4
-
Alt nameth (left arm)-P2A-Gal4-th (right arm)
-
SpeciesD. rerio (zebrafish)
-
Entrez Geneth
- Promoter none
Cloning Information
- Cloning method TOPO Cloning
- 5′ sequencing primer M13pUC-fwd
- 3′ sequencing primer M13 Reverse (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
th-P2A-Gal4 donor was a gift from Jiu-lin Du (Addgene plasmid # 65563 ; http://n2t.net/addgene:65563 ; RRID:Addgene_65563) -
For your References section:
Intron targeting-mediated and endogenous gene integrity-maintaining knockin in zebrafish using the CRISPR/Cas9 system. Li J, Zhang BB, Ren YG, Gu SY, Xiang YH, Huang C, Du JL. Cell Res. 2015 Apr 7. doi: 10.1038/cr.2015.43. 10.1038/cr.2015.43 PubMed 25849248

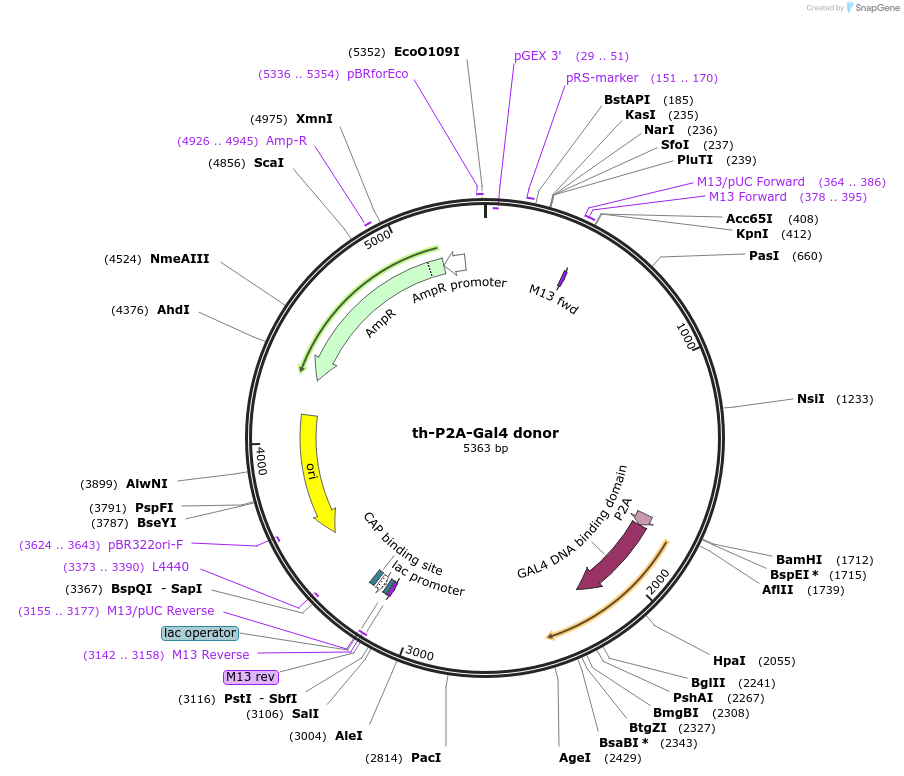

Map uploaded by the depositor.
