POT4-RFP
(Plasmid
#65320)
-
Purposereceiving vector of standard transcription units(TUs) in YeastFab work, useful for further assembly
-
Depositing Lab
-
Publication
-

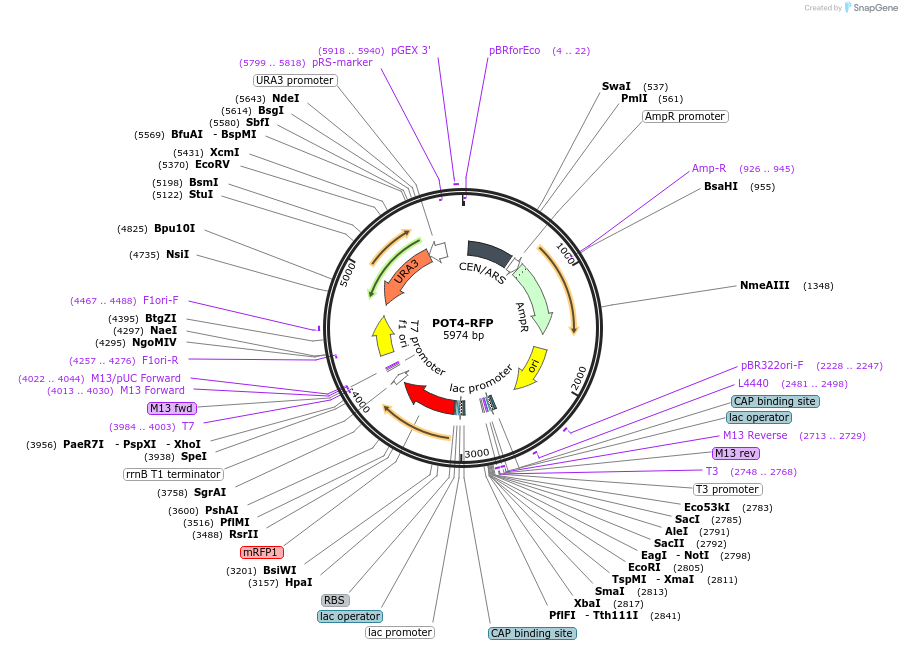

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 65320 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepRS416
-
Backbone manufacturerAgilent Technologies
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameRFP
-
Insert Size (bp)1130
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer M13-F20
- 3′ sequencing primer M13 Reverse (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
the RFP gene was used for screening positive transformants(original plasmids would appear red due to expression of RFP, when RFP was replaced by desired inserts, the colony was white)
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
POT4-RFP was a gift from Junbiao Dai (Addgene plasmid # 65320 ; http://n2t.net/addgene:65320 ; RRID:Addgene_65320) -
For your References section:
YeastFab: the design and construction of standard biological parts for metabolic engineering in Saccharomyces cerevisiae. Guo Y, Dong J, Zhou T, Auxillos J, Li T, Zhang W, Wang L, Shen Y, Luo Y, Zheng Y, Lin J, Chen GQ, Wu Q, Cai Y, Dai J. Nucleic Acids Res. 2015 May 8. pii: gkv464. 10.1093/nar/gkv464 PubMed 25956650
