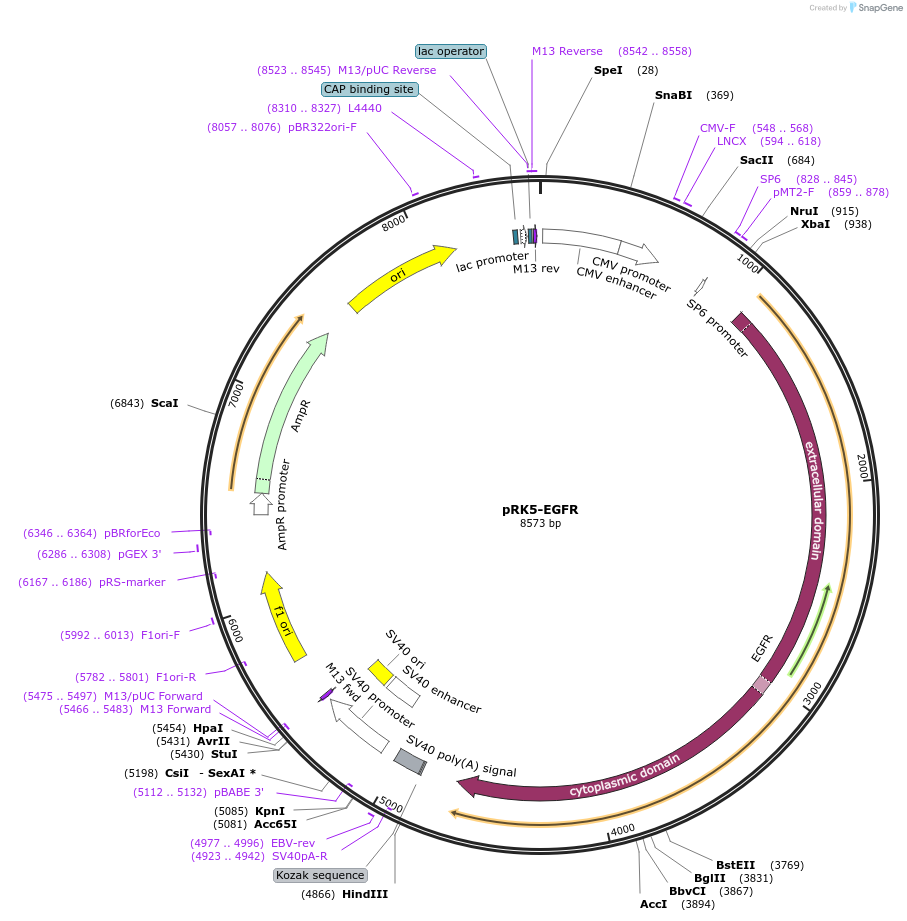

pRK5-EGFR
(Plasmid #65225)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 65225 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pRK5
  • Backbone manufacturer
    BD PharMingen
  • Backbone size w/o insert (bp) 4754
  • Total vector size (bp) 8754
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    EGFR
  • Alt name
    HER1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    4000
  • Entrez Gene
    EGFR (a.k.a. ERBB, ERBB1, ERRP, HER1, NISBD2, NNCIS, PIG61, mENA)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CATACGATTTAGGTGACACTATAG
  • 3′ sequencing primer TATAAGCTGCAATAAAC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRK5-EGFR was a gift from Axel Ullrich (Addgene plasmid # 65225 ; http://n2t.net/addgene:65225 ; RRID:Addgene_65225)
