pRSET-A2-77p-Venus
(Plasmid
#64856)
-
PurposeExpresses aa 1594-1670 of A2 Domain of VWF protein, TEV cleavage site and Venus followed by 7X His tag
-
Depositing Lab
-

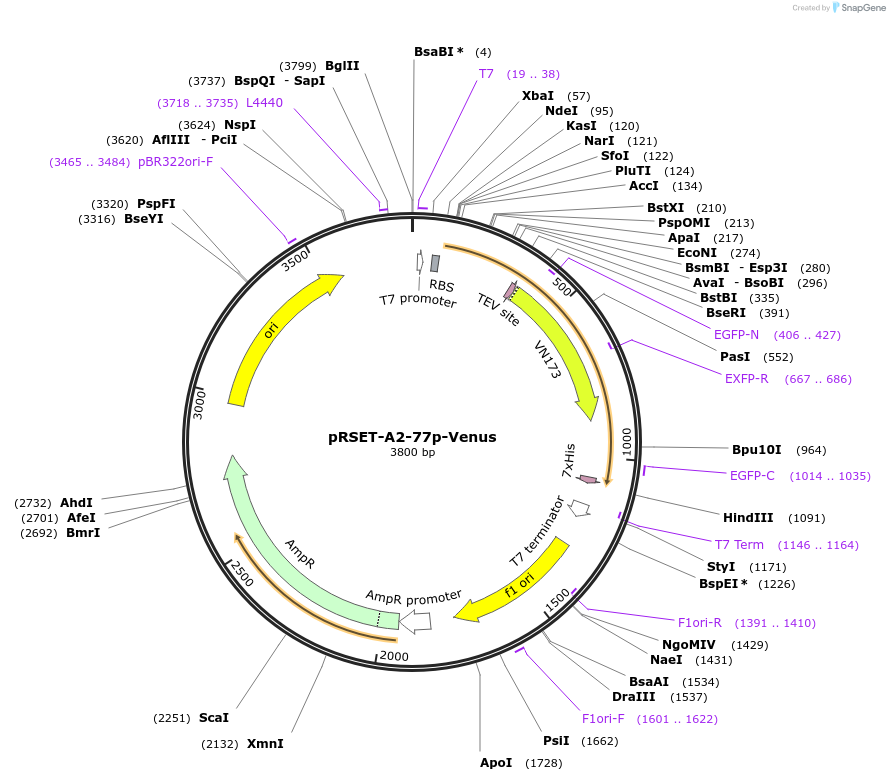

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 64856 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepRSET
- Backbone size w/o insert (bp) 2807
- Total vector size (bp) 3800
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameVWF A2 domain aa 1594-1670_TEV_Venus_7X His
-
SpeciesH. sapiens (human), Synthetic
-
Insert Size (bp)989
-
GenBank IDNM_000552.3| DQ092360.1
-
Entrez GeneVWF (a.k.a. F8VWF, VWD)
- Promoter T7 Promoter
-
Tags
/ Fusion Proteins
- 7X His (C terminal on insert)
- Venus (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer T7 Promoter
- 3′ sequencing primer T7 Terminator (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRSET-A2-77p-Venus was a gift from Sriram Neelamegham (Addgene plasmid # 64856 ; http://n2t.net/addgene:64856 ; RRID:Addgene_64856) -
For your References section:
Detection of Plasma Protease Activity Using Microsphere-Cytometry Assays with E. coli Derived Substrates: VWF Proteolysis by ADAMTS13. Gogia S, Lo CY, Neelamegham S. PLoS One. 2015 May 18;10(5):e0126556. doi: 10.1371/journal.pone.0126556. eCollection 2015. PONE-D-14-53606 [pii] PubMed 25992814
