pRSET-XS-VWF
(Plasmid
#64847)
-
PurposeExpresses aa1594–1670 of VWF A2 domain flanked by Venus and Cerulean and tagged with 7X His at C terminus
-
Depositing Lab
-

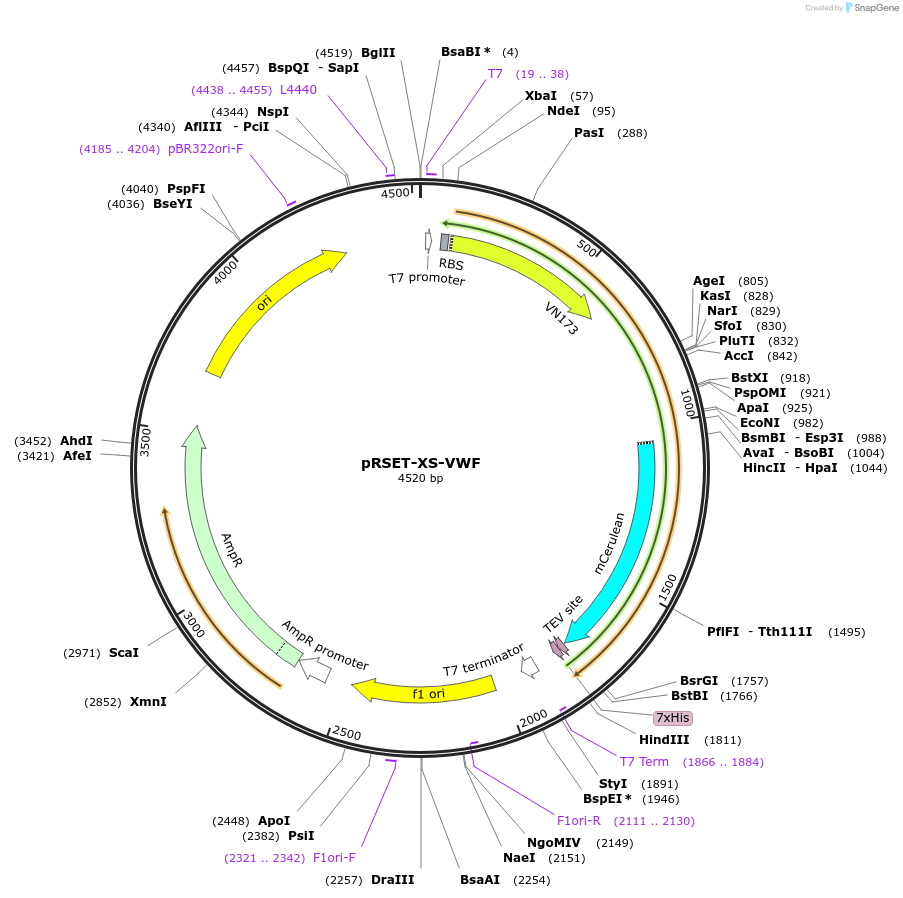

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 64847 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepRSET
- Backbone size w/o insert (bp) 2807
- Total vector size (bp) 4520
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameVenus_VWF A2 domain aa 1594-1670_Cerulean_TEV_7X His
-
SpeciesH. sapiens (human), Synthetic
-
Insert Size (bp)1713
-
GenBank IDNM_000552.3| DQ092360.1
-
Entrez GeneVWF (a.k.a. F8VWF, VWD)
- Promoter T7
-
Tags
/ Fusion Proteins
- 7X His (C terminal on insert)
- Venus (N terminal on insert)
- Cerulean (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NdeI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer T7 promoter
- 3′ sequencing primer T7 Terminator (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRSET-XS-VWF was a gift from Sriram Neelamegham (Addgene plasmid # 64847 ; http://n2t.net/addgene:64847 ; RRID:Addgene_64847) -
For your References section:
Escherichia coli-derived von Willebrand factor-A2 domain fluorescence/Forster resonance energy transfer proteins that quantify ADAMTS13 activity. Dayananda KM, Gogia S, Neelamegham S. Anal Biochem. 2011 Mar 15;410(2):206-13. doi: 10.1016/j.ab.2010.12.005. Epub 2010 Dec 10. 10.1016/j.ab.2010.12.005 PubMed 21146487
