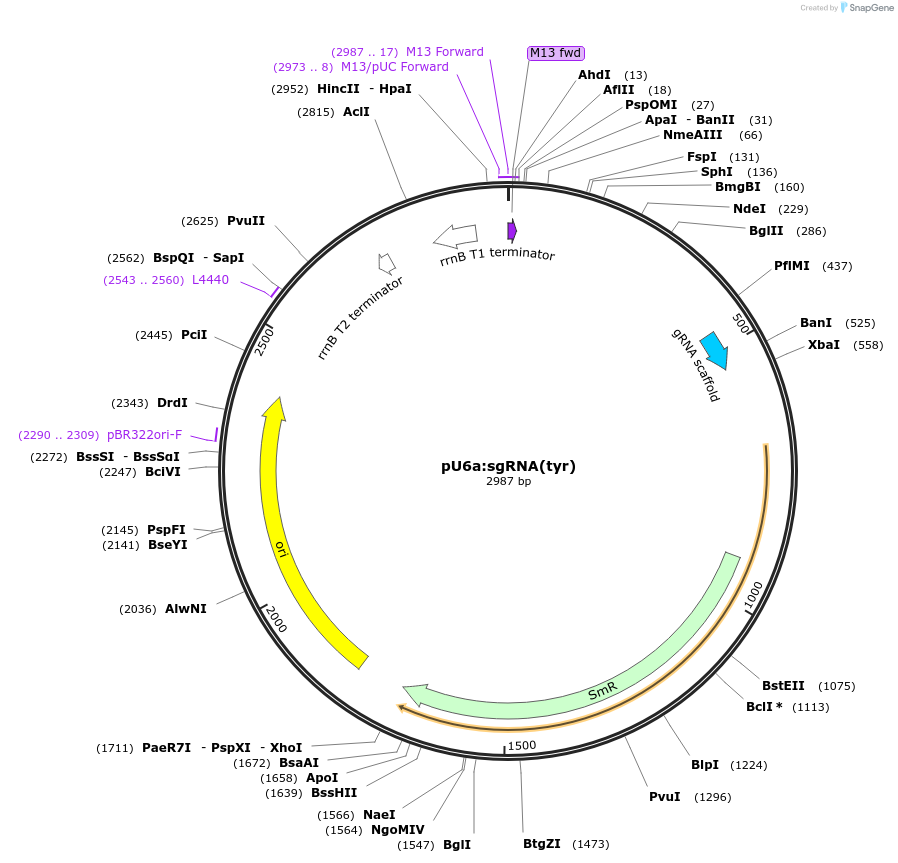

pU6a:sgRNA(tyr)
(Plasmid #64250)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 64250 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLR-NN
  • Backbone manufacturer
    Adam Bogdanove, Daniel Voytas lab
  • Backbone size w/o insert (bp) 2568
  • Total vector size (bp) 2986
  • Vector type
    CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    U6a:sgRNA (tyr)
  • gRNA/shRNA sequence
    gGACTGGAGGACTTCTGGGG
  • Species
    D. rerio (zebrafish)
  • GenBank ID
    NC_007126.6 NC_007126.6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsmBI (destroyed during cloning)
  • 3′ cloning site BsmBI (destroyed during cloning)
  • 5′ sequencing primer TTGGGCCCGGTCTCTAGTCAAGTCTCTCAGCGTTTCTCC
  • 3′ sequencing primer CTCGGTGCCACTTTTTCAAGTTG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pU6a:sgRNA(tyr) was a gift from Wenbiao Chen (Addgene plasmid # 64250 ; http://n2t.net/addgene:64250 ; RRID:Addgene_64250)

  • For your References section:

    Multiplex Conditional Mutagenesis Using Transgenic Expression of Cas9 and sgRNAs. Yin L, Maddison LA, Li M, Kara N, LaFave MC, Varshney GK, Burgess SM, Patton JG, Chen W. Genetics. 2015 Apr 8. pii: genetics.115.176917. 10.1534/genetics.115.176917 PubMed 25855067
