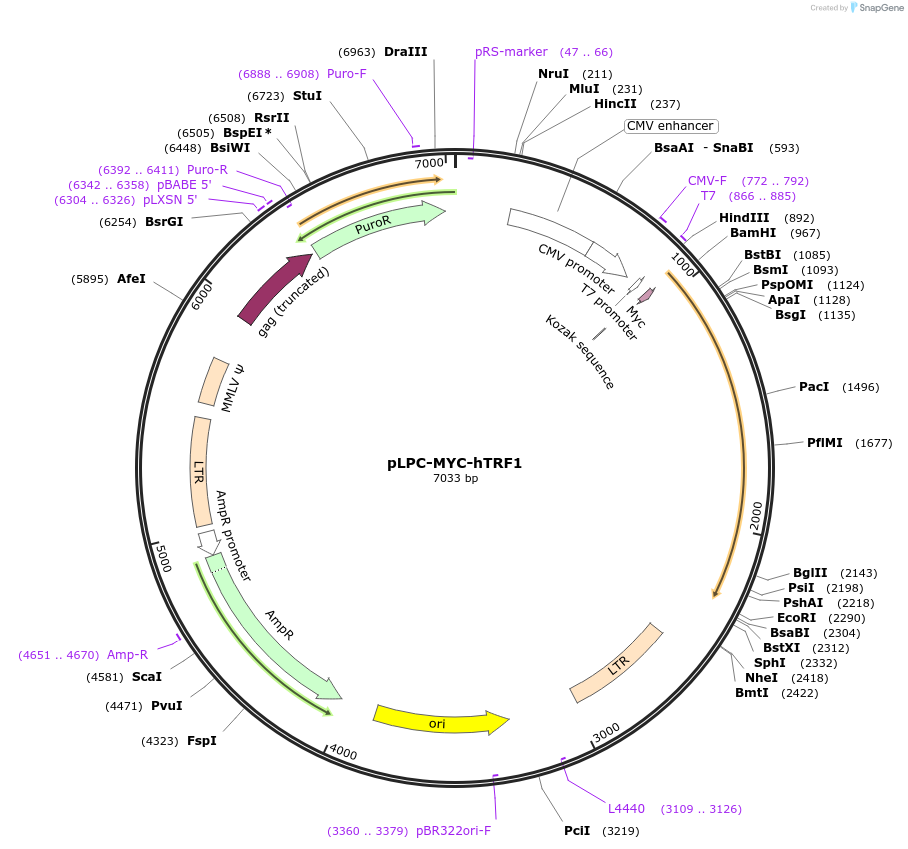

pLPC-MYC-hTRF1
(Plasmid #64164)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 64164 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLPC-N MYC
  • Backbone manufacturer
    de Lange Lab (Addgene plasmid# 12540)
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    hTRF1
  • Alt name
    telomeric repeat binding factor (NIMA-interacting) 1
  • Alt name
    TERF1
  • Species
    H. sapiens (human)
  • GenBank ID
    NM_017489.2 NP_059523.2
  • Entrez Gene
    TERF1 (a.k.a. PIN2, TRBF1, TRF, TRF1, hTRF1-AS, t-TRF1)
  • Promoter CMV
  • Tag / Fusion Protein
    • Myc (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer pLPC-5 (5'-TAGGCGTGTACGGTGGGA-3')
  • 3′ sequencing primer pLPC-3 (5'-CTTGCCAAACCTACAGGT-3')
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLPC-MYC-hTRF1 was a gift from Titia de Lange (Addgene plasmid # 64164 ; http://n2t.net/addgene:64164 ; RRID:Addgene_64164)

  • For your References section:

    TRF1 negotiates TTAGGG repeat-associated replication problems by recruiting the BLM helicase and the TPP1/POT1 repressor of ATR signaling. Zimmermann M, Kibe T, Kabir S, de Lange T. Genes Dev. 2014 Nov 15;28(22):2477-91. doi: 10.1101/gad.251611.114. Epub 2014 Oct 24. 10.1101/gad.251611.114 PubMed 25344324
