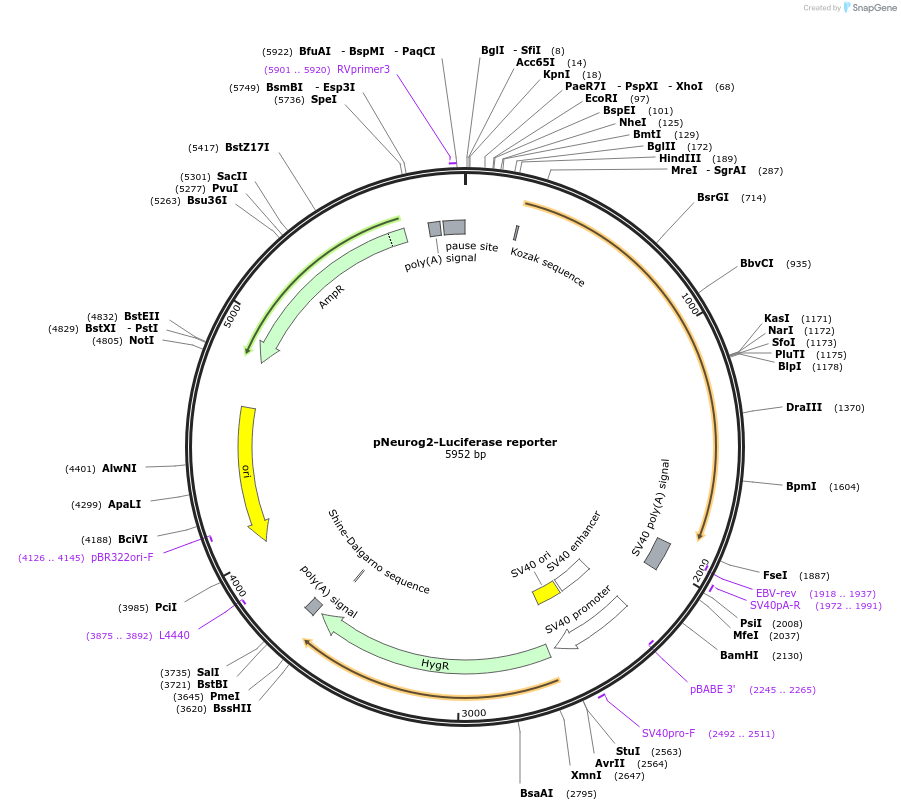

pNeurog2-Luciferase reporter
(Plasmid
#64126)
-
PurposePhotoactivatable transcription system. Luciferase reporter under the control of the Neurog2 promoter.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 64126 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepGL4.31
-
Backbone manufacturerPromega
- Backbone size w/o insert (bp) 3500
-
Vector typeMammalian Expression, Luciferase
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNeurog2 promoter
-
SpeciesSynthetic
- Promoter Neurog2
-
Tag
/ Fusion Protein
- luciferase (C terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII (not destroyed)
- 3′ cloning site XbaI (not destroyed)
- 5′ sequencing primer LucNRev (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pNeurog2-Luciferase reporter was a gift from Moritoshi Sato (Addgene plasmid # 64126 ; http://n2t.net/addgene:64126 ; RRID:Addgene_64126) -
For your References section:
CRISPR-Cas9-based Photoactivatable Transcription System. Nihongaki Y, Yamamoto S, Kawano F, Suzuki H, Sato M. Chem Biol. 2015 Feb 19;22(2):169-74. doi: 10.1016/j.chembiol.2014.12.011. Epub 2015 Jan 22. 10.1016/j.chembiol.2014.12.011 PubMed 25619936
